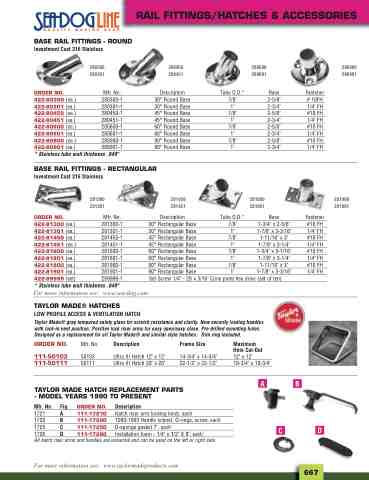

Page 699 - 2025 Parts & Accessories Catalogue

RAIL FITTINGS/HATCHES & ACCESSORIES
BASE RAIL FITTINGS - ROUND
Investment Cast 316 Stainless
ORDER NO.
422-80300 (ea.)
422-80301 (ea.)
422-80450 (ea.)
422-80451 (ea.)
422-80600 (ea.)
422-80601 (ea.)
422-80900 (ea.)
422-80901 (ea.)
280300 280301
Mfr. No.
280300-1
280301-1
280450-1
280451-1
280600-1
280601-1
280900-1
280901-1
280450 280451
Description
30° Round Base
30° Round Base
45° Round Base
45° Round Base
60° Round Base
60° Round Base
90° Round Base
90° Round Base
Tube O.D.*
7/8"
1"
7/8"
1"
7/8"
1"
7/8"
1"
Tube O.D.*
7/8"
1"
7/8"
1"
7/8"
1"
7/8"
1"
280600 280601
281600 281601
Base
2-5/8"
2-3/4"
2-5/8"
2-3/4"
2-5/8"
2-3/4"
2-5/8"
2-3/4"
Base
Fastener
# 10FH
1/4" FH
#10 FH
1/4" FH
#10 FH
1/4" FH
#10 FH
1/4" FH
Fastener
#10 FH
1/4" FH
#10 FH
1/4" FH
#10 FH
1/4" FH
#10 FH
1/4" FH
280900 280901
281900 281901
* Stainless tube wall thickness .049"
BASE RAIL FITTINGS - RECTANGULAR
Investment Cast 316 Stainless
ORDER NO.
422-81300 (ea.)
422-81301 (ea.)
422-81450 (ea.)
422-81451 (ea.)
422-81600 (ea.)
422-81601 (ea.)
422-81900 (ea.)
422-81901 (ea.)
422-99999 (set)
281300 281301
Mfr. No.
281300-1
281301-1
281450-1
281451-1
281600-1
281601-1
281900-1
281901-1
299999-1
281450 281451
Description
30° Rectangular Base
30° Rectangular Base
45° Rectangular Base
45° Rectangular Base
60° Rectangular Base
60° Rectangular Base
90° Rectangular Base
90° Rectangular Base
Set Screw 1/4" - 28 x
1-3/4" x 2-5/8"
1-7/8" x 3-3/16"
1-11/16" x 3"
1-7/8" x 3-1/4"
1-3/4" x 3-1/16"
1-7/8" x 3-1/4"
1-11/16" x 3"
1-7/8" x 3-3/16"
3/16" Cone point hex drive (set of ten)
* Stainless tube wall thickness .049"
For more information see: www.sea-dog.com
TAYLOR MADE® HATCHES
LOW PROFILE ACCESS & VENTILATION HATCH
Taylor Made® gray tempered safety glass for scratch resistance and clarity. New security locking handles with lock-in vent position. Positive lock riser arms for easy open/easy close. Pre-drilled mounting holes. Designed as a replacement for all Taylor Made® and similar style hatches. Trim ring included.
ORDER NO. 111-50103
111-50111
Mfr. No. 50103
50111
Description
Ultra III Hatch 12" x 12"
Ultra III Hatch 20" x 20"
Frame Size
14-3/4" x 14-3/4"
22-1/2" x 22-1/2"
Maximum Hole Cut-Out 12" x 12"
19-3/4" x 19-3/4"
A
B
TAYLOR MADE HATCH REPLACEMENT PARTS - MODEL YEARS 1990 TO PRESENT
Mfr. No. Fig.
1721 A
1720 B
1725 C
1726 D
ORDER NO.
111-17210
111-17200
111-17250
111-17260
Description
Hatch riser arm locking knob, each
1990-1993 Handle w/post, O-rings, screw, each
D-sponge gasket 7", each'
Installation foam - 1/4" x 1/2" X 8", each'
D
C
All hatch riser arms and handles are universal and can be used on the left or right side.
For more information see: www.taylormadeproducts.com
667
