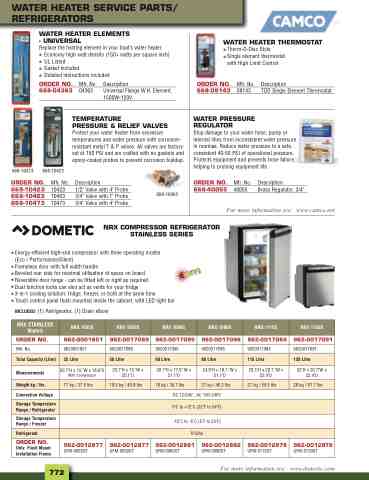

Page 804 - 2025 Parts & Accessories Catalogue

WATER HEATER SERVICE PARTS/ REFRIGERATORS
WATER HEATER ELEMENTS - UNIVERSAL Replace the heating element in your boat’s water heater. • Economy high watt density (150+ watts per square inch) • UL Listed • Gasket included • Detailed instructions included
ORDER NO. Mfr. No. Description
668-04363 04363 Universal Flange W.H. Element, 1500W-120V
WATER HEATER THERMOSTAT
•Therm-O-Disc Style •Single element thermostat
with High Limit Control
ORDER NO. Mfr. No.
668-08143 08143
Description
TOD Single Element Thermostat
TEMPERATURE PRESSURE & RELIEF VALVES Protect your water heater from excessive temperatures and water pressure with corrosion- resistant metal T & P valves. All valves are factory set at 150 PSI and are crafted with no gaskets and epoxy-coated probes to prevent corrosion buildup.
WATER PRESSURE REGULATOR Stop damage to your water hose, pump or internal lines from inconsistent water pressure in marinas. Reduce water pressure to a safe, consistent 40-50 PSI of operational pressure. Protects equipment and prevents hose failure, helping to prolong equipment life.
668-10473
668-10423
ORDER NO.
668-10423
668-10463
668-10473
Mfr. No.
10423
10463
10473
Description
1/2" Valve with 4" Probe
3/4" Valve with 1" Probe
3/4" Valve with 4" Probe
ORDER NO.
668-40055
Mfr. No.
40055
Description
Brass Regulator, 3/4"
668-10463
For more information see: www.camco.net
NRX COMPRESSOR REFRIGERATOR STAINLESS SERIES
•Energy-efficient high-end compressor with three operating modes (Eco / Performance/Silent)
•Frameless door with full width handle •Beveled rear side for maximal utilisation of space on board •Reversible door hinge - can be fitted left or right as required •Dual function locks can also act as vents for your fridge •3-in-1 cooling solution: fridge, freezer, or both at the same time •Touch control panel flush mounted inside the cabinet, with LED light bar
INCLUDED: (1) Refrigerator, (1) Drain elbow
NRX STAINLESS Models
NRX 1035S
NRX 1050S
NRX 1060S
NRX 1080S
NRX 1115S
NRX 1130S
ORDER NO. 962-0001851 962-0017089 962-0017095 962-0017096 962-0017084 962-0017091
Mfr. No.
Total Capacity (Litre)
Measurements
Weight kg / lbs.
Connection Voltage
Storage Temperature Range / Refrigerator
Storage Temperature Range / Freezer
Refrigerant
ORDER NO.
Univ. Flush Mount Installation Frame
9620001851
35 Litre
20.7"H x 15."W x 18.9"D With Compressor
17 kg / 37.5 lbs
962-0012877
UFM-0050ST
9620017089
50 Litre
20.7"H x 15."W x 20.1"D
18.5 kg / 40.8 lbs
962-0012877
UFM-0050ST
9620017095
60 Litre
20.7"H x 17.6."W x 21.1"D
18 kg / 39.7 lbs
9620017096
80 Litre
24.6"H x 18.7."W x 21.1"D
21 kg / 46.3 lbs
9620017084
115 Litre
29.3"H x 20.7."W x 22.4"D
27 kg / 59.5 lbs
962-0012878
UFM-0115ST
9620017091
130 Litre
32"H x 20.7"W x 22.4"D
28kg/61.7lbs
962-0012876
UFM-0130ST
DC 12/24V , AC 100-240V
0˚C to +12˚C (32˚F to 54˚F)
-15˚C to -5˚C (5˚F to 23˚F)
R134a
962-0012881
UFM-0060ST
962-0012882
UFM-0080ST
772
For more information see: www.dometic.com
