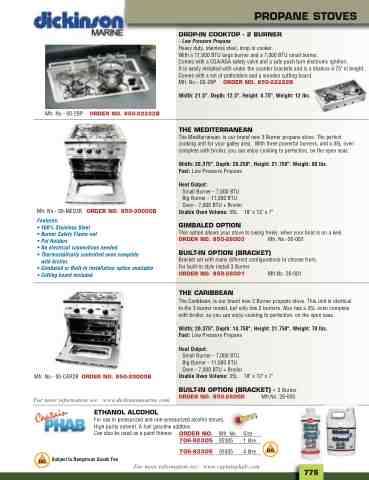

Page 807 - 2025 Parts & Accessories Catalogue

PROPANE STOVES
Mfr. No.- 00-2BP ORDER NO. 850-22222B
Mfr. No.- 00-MED3B ORDER NO. 850-30000B
Features: • 100% Stainless Steel • Burner Safety Flame-out • Pot Holders • No electrical connections needed • Thermostatically controlled oven complete
with broiler. • Gimbaled or Built-In installation option available • Cutting board included
Mfr. No.- 00-CAR2B ORDER NO. 850-20000B
For more information see: www.dickinsonmarine.com
ETHANOL ALCOHOL
For use in pressurized and non-pressurized alcohol stoves. High purity solvent. A fuel gasoline additive.
Can also be used as a paint thinner. ORDER NO.
706-92305
706-93305
Mfr. No.
92305
93305
Size
1 litre
4 litre
DG
DG
Subject to Dangerous Goods Fee
For more information see: www.captainphab.com
DROP-IN COOKTOP - 2 BURNER
- Low Pressure Propane
Heavy duty, stainless steel, drop in cooker. With a 11,000 BTU large burner and a 7,000 BTU small burner. Comes with a CGA/AGA safety valve and a safe push turn electronic ignition. It is easily installed with under the counter brackets and is a shallow 4.75" in height. Comes with a set of potholders and a wooden cutting board. Mfr. No.- 00-2BP ORDER NO. 850-22222B
Width: 21.5", Depth: 12.5", Height: 4.75", Weight: 12 lbs.
THE MEDITERRANEAN
The Mediterranean, is our brand new 3 Burner propane stove. The perfect cooking unit for your galley area. With three powerful burners, and a 35L oven complete with broiler, you can enjoy cooking to perfection, on the open seas.
Width: 20.375", Depth: 20.250", Height: 21.750", Weight: 80 lbs. Fuel: Low Pressure Propane
Heat Output:
Small Burner - 7,000 BTU Big Burner - 11,000 BTU Oven - 7,000 BTU + Broiler
Usable Oven Volume: 35L 18" x 12" x 7"
GIMBALED OPTION
This option allows your stove to swing freely, when your boat is on a keel. ORDER NO. 850-26003 Mfr. No.-26-003
BUILT-IN OPTION (BRACKET)
Bracket set with many different configurations to choose from. For built-in style install 3 Burner ORDER NO. 850-26001 Mfr.No. 26-001
THE CARIBBEAN
The Caribbean, is our brand new 2 Burner propane stove. This unit is identical to the 3 burner model, but only has 2 burners. Also has a 35L oven complete with broiler, so you can enjoy cooking to perfection, on the open seas.
Width: 20.375", Depth: 14.750", Height: 21.750", Weight: 70 lbs. Fuel: Low Pressure Propane
Heat Output:
Small Burner - 7,000 BTU Big Burner - 11,000 BTU Oven - 7,000 BTU + Broiler
Usable Oven Volume: 35L 18" x 12" x 7"
BUILT-IN OPTION (BRACKET) - 2 Burner ORDER NO. 850-26000 Mfr.No. 26-000
775
