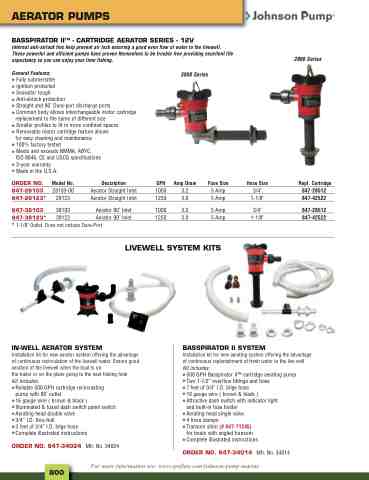

Page 832 - 2025 Parts & Accessories Catalogue

AERATOR PUMPS
BASSPIRATOR IITM - CARTRIDGE AERATOR SERIES - 12V
Internal anti-airlock fins help prevent air lock ensuring a good even flow of water to the livewell. These powerful and efficient pumps have proven themselves to be trouble free providing excellent life expectancy so you can enjoy your time fishing.
2800 Series
Repl. Cartridge
847-28512
847-42522
847-28512
847-42522
General Features:
• Fully submersible • Ignition protected • Seawater tough • Anti-airlock protection • Straight and 90˚ Dura-port discharge ports • Common body allows interchangeable motor cartridge
replacement to the same of different size • Smaller profiles to fit in more confined spaces • Removable motor cartridge feature allows
3800 Series
for easy cleaning and maintenance • 100% factory tested • Meets and exceeds NMMA, ABYC,
ISO 8846, CE and USCG specifications • 3-year warranty • Made in the U.S.A.
ORDER NO.
847-28103
847-28123*
847-38103
847-38123*
Model No.
28103-00
28123
38103
38123
Description
Aerator Straight Inlet
Aerator Straight Inlet
Aerator 90˚ Inlet
Aerator 90˚ Inlet
GPH Amp Draw
1000 3.2
1250 3.0
1000 3.2
1250 3.0
Fuse Size
5 Amp
5 Amp
5 Amp
5 Amp
Hose Size
3/4"
1-1/8"
3/4"
1-1/8"
* 1-1/8" Outlet. Does not include Dura-Port
IN-WELL AERATOR SYSTEM
Installation kit for new aerator system offering the advantage of continuous recirculation of the livewell water. Ensure good aeration of the livewell when the boat is on the trailer or on the plane going to the next fishing hole
Kit includes:
•Reliable 500 GPH cartridge recirculating pump with 90˚ outlet
•16 gauge wire ( brown & black ) •Illuminated & fused dash switch panel switch •Aerating head double valve •3/4” I.D. thru-hull •3 feet of 3/4” I.D. bilge hose •Complete illustrated instructions
LIVEWELL SYSTEM KITS
BASSPIRATOR II SYSTEM
Installation kit for new aerating system offering the advantage of continuous replenishment of fresh water to the live well. Kit includes: •500 GPH Basspirator IITM cartridge aerating pump
•Two 1-1/2” overflow fittings and hose •7 feet of 3/4” I.D. bilge hose •16 gauge wire ( brown & black ) •Attractive dash switch with indicator light
and built-in fuse holder •Aerating head single valve •4 hose clamps •Transom shim (# 847-71245)
for boats with angled transom •Complete illustrated instructions
ORDER NO. 847-34024 Mfr. No. 34024 For more information see: www.spxflow.com/johnson-pump-marine
ORDER NO. 847-34014 Mfr. No. 34014
