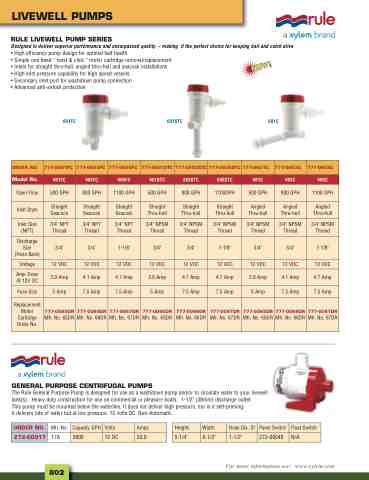

Page 834 - 2025 Parts & Accessories Catalogue

LIVEWELL PUMPS
RULE LIVEWELL PUMP SERIES
Designed to deliver superior performance and unsurpassed quality – making it the perfect choice for keeping bait and catch alive
• High efficiency pump design for optimal bait health • Simple one hand “ twist & click ” motor cartridge removal/replacement • Inlets for straight thru-hull, angled thru-hull and seacock installations • High inlet pressure capability for high speed vessels • Secondary inlet port for washdown pump connection • Advanced anti-airlock protection
601FC 601STC 601C
ORDER NO. 777-0601FC 777-0603FC 777-0605FC 777-0601STC 777-0603STC 777-0605STC 777-0601C 777-0603C 777-0605C
Model No.
Open Flow
Inlet Style
Inlet Size (NPT)
Discharge Size (Hose Barb)
Voltage
Amp Draw @ 12V DC
Fuse Size
Replacement Motor Cartridge Order No.
601FC
500 GPH
Straight Seacock
3/4" NPT Thread
3/4"
12 VDC
3.0 Amp
5 Amp
603FC
800 GPH
Straight Seacock
3/4" NPT Thread
3/4"
12 VDC
4.1 Amp
7.5 Amp
605FC
1100 GPH
Straight Seacock
3/4" NPT Thread
1-1/8"
12 VDC
4.7 Amp
7.5 Amp
601STC
500 GPH
Straight Thru-hull
3/4" NPSM Thread
3/4"
12 VDC
3.0 Amp
5 Amp
603STC
800 GPH
Straight Thru-hull
3/4" NPSM Thread
3/4"
12 VDC
4.1 Amp
7.5 Amp
605STC
1100GPH
Straight Thru-hull
3/4" NPSM Thread
1-1/8"
12 VDC
4.7 Amp
7.5 Amp
601C
500 GPH
Angled Thru-hull
3/4" NPSM Thread
3/4"
12 VDC
3.0 Amp
5 Amp
603C
800 GPH
Angled Thru-hull
3/4" NPSM Thread
3/4"
12 VDC
4.1 Amp
7.5 Amp
605C
1100 GPH
Angled Thru-hull
3/4" NPSM Thread
1-1/8"
12 VDC
4.7 Amp
7.5 Amp
777-0065DR 777-0066DR 777-0067DR 777-0065DR 777-0066DR 777-0067DR 777-0065DR 777-0066DR 777-0067DR
Mfr. No. 65DR Mfr. No. 66DR Mfr. No. 67DR Mfr. No. 65DR Mfr. No. 66DR Mfr. No. 67DR Mfr. No. 65DR Mfr. No. 66DR Mfr. No. 67DR
GENERAL PURPOSE CENTRIFUGAL PUMPS
The Rule General Purpose Pump is designed for use as a washdown pump and/or to circulate water to your livewell tank(s). Heavy duty construction for use on commercial or pleasure boats. 1-1/2" (38mm) discharge outlet. This pump must be mounted below the waterline. It does not deliver high pressure, nor is it self-priming. It delivers lots of water but at low pressure. 12 volts DC. Non-Automatic.
ORDER NO. Mfr. No. Capacity GPH Volts Amps Height. Width Hose Dia. ID Panel Switch 272-00017 17A 3800 12 DC 20.0 5-1/4" 8-1/2" 1-1/2" 272-00049
Float Switch N/A
For more information see: www.xylem.com
