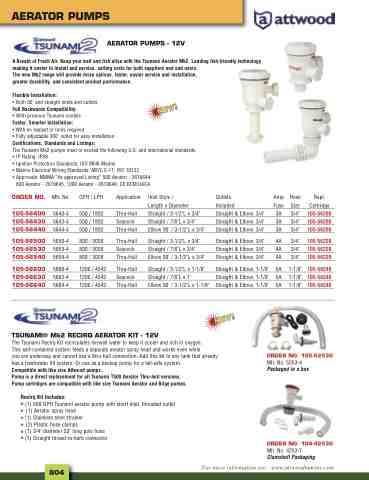

Page 836 - 2025 Parts & Accessories Catalogue

AERATOR PUMPS
AERATOR PUMPS - 12V
A Breath of Fresh Air. Keep your bait and fish alive with the Tsunami Aerator Mk2. Leading fish-friendly technology making it easier to install and service, cutting costs for both suppliers and end users. The new Mk2 range will provide more options, faster, easier service and installation, greater durability, and consistent product performance.
Flexible Installation:
• Both 90˚ and straight inlets and outlets
Full Backwards Compatibility:
• With previous Tsunami models
Faster, Smarter Installation:
• With no sealant or tools required • Fully adjustable 360˚ outlet for easy installation Certifications, Standards and Listings: The Tsunami Mk2 pumps meet or exceed the following U.S. and international standards. • IP Rating: IP68 • Ignition Protection Standards: ISO 8846 Marine • Marine Electrical Wiring Standards: ABYC E-11, ISO 10133 • Approvals: NMMA “As approved Listing” 500 Aerator - 2619644,
800 Aerator - 2619645, 1200 Aerator - 2619646; CE;RCM;UKCA
ORDER NO.
105-56400
105-56430
105-56440
105-56500
105-56530
105-56540
105-56600
105-56630
105-56640
Mfr. No.
5640-4
5643-4
5644-4
5650-4
5653-4
5654-4
5660-4
5663-4
5664-4
GPH / LPH
500 / 1892
500 / 1892
500 / 1892
800 / 3028
800 / 3028
800 / 3028
1200 / 4542
1200 / 4542
1200 / 4542
Application
Thru-Hull
Seacock
Thru-Hull
Thru-Hull
Seacock
Thru-Hull
Thru-Hull
Seacock
Thru-Hull
Inlet Style / Length x Diameter
Straight / 3-1/2"L x 3/4"
Straight / 7/8"L x 3/4"
Elbow 90˚ / 3-1/2"L x 3/4"
Straight / 3-1/2"L x 3/4"
Straight / 7/8"L x 3/4"
Elbow 90˚ / 3-1/2"L x 3/4"
Straight / 3-1/2"L x 1-1/8"
Straight / 7/8"L x 1"
Elbow 90˚ / 3-1/2"L x 1-1/8"
Outlets Included
Straight & Elbow, 3/4"
Straight & Elbow, 3/4"
Straight & Elbow, 3/4"
Straight & Elbow, 3/4"
Straight & Elbow, 3/4"
Straight & Elbow, 3/4"
Straight & Elbow, 1-1/8"
Straight & Elbow, 1-1/8"
Straight & Elbow, 1-1/8"
Amp Hose Fuse Size
3A 3/4"
3A 3/4"
3A 3/4"
4A 3/4"
4A 3/4"
4A 3/4"
5A 1-1/8"
5A 1-1/8"
5A 1-1/8"
Repl. Cartridge
105-56200
105-56200
105-56200
105-56220
105-56220
105-56220
105-56240
105-56240
105-56240
TSUNAMI® Mk2 RECIRQ AERATOR KIT - 12V
The Tsunami Recirq Kit recirculates livewell water to keep it cooler and rich in oxygen. This self-contained system feeds a separate aerator spray head and works even while you are underway and cannot use a thru-hull connection. Add this kit to any tank that already has a freshwater fill system. Or use as a backup pump for a fail-safe system. Compatible with like size Attwood pumps. Pump is a direct replacement for all Tsunami T500 Aerator Thru-hull versions. Pump cartridges are compatible with like size Tsunami Aerator and Bilge pumps.
Recirq Kit Includes:
• (1) 500 GPH Tsunami aerator pump with short inlet, threaded outlet • (1) Aerator spray head • (1) Stainless steel strainer • (2) Plastic hose clamps
• (1) 3/4" diameter 23" long poly hose • (1) Straight thread-to-barb connector
ORDER NO. 105-52530
Mfr. No. 5253-4
Packaged in a box
ORDER NO. 104-42530
Mfr. No. 4253-7
Clamshell Packaging
For more information see: www.attwoodmarine.com
804
