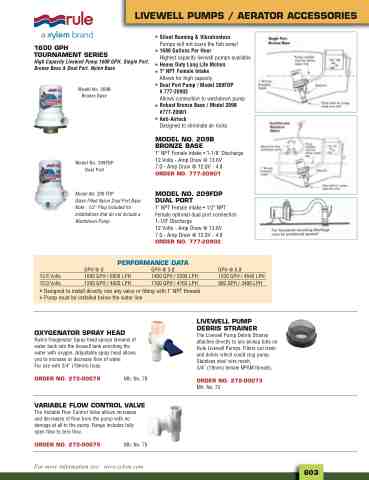

Page 835 - 2025 Parts & Accessories Catalogue

Model No. 209FDP Dual Port
LIVEWELL PUMPS / AERATOR ACCESSORIES
1600 GPH TOURNAMENT SERIES High Capacity Livewell Pump 1600 GPH, Single Port, Bronze Base & Dual Port, Nylon Base
Model No. 209B Bronze Base
Model No. 209 FDP Glass Filled Nylon Dual Port Base Note : 1/2” Plug included for installations that do not include a Washdown Pump
OXYGENATOR SPRAY HEAD
Rule’s Oxygenator Spray head sprays streams of water back into the livewell tank enriching the water with oxygen. Adjustable spray head allows you to increase or decrease flow of water.
• Silent Running & Vibrationless Pumps will not scare the fish away!
• 1600 Gallons Per Hour Highest capacity livewell pumps available
• Heavy Duty Long Life Motors • 1" NPT Female Intake
Allows for high capacity
• Dual Port Pump / Model 209FDP # 777-20902 Allows connection to washdown pump
• Robust Bronze Base / Model 209B #777-20901
• Anti-Airlock Designed to eliminate air locks
MODEL NO. 209B BRONZE BASE 1" NPT Female intake • 1-1/8" Discharge 12 Volts - Amp Draw @ 13.6V 7.0 - Amp Draw @ 12.0V - 4.8 ORDER NO. 777-20901
MODEL NO. 209FDP DUAL PORT 1" NPT Female intake • 1/2" NPT Female optional dual port connection 1-1/8" Discharge
12 Volts - Amp Draw @ 13.6V 7.0 - Amp Draw @ 12.0V - 4.8 ORDER NO. 777-20902
LIVEWELL PUMP DEBRIS STRAINER The Livewell Pump Debris Strainer attaches directly to any pickup tube on Rule Livewell Pumps. Filters out trash and debris which could clog pump. Stainless steel wire mesh, 3/4” (19mm) female NPSM threads.
ORDER NO. 272-00073
Mfr. No. 73
PERFORMANCE DATA
GPH @ 3.0'
1400 GPH / 5299 LPH
1100 GPH / 4163 LPH
GPH @ 0'
13.6 Volts 1600 GPH / 6056 LPH
12.0 Volts 1300 GPH / 4920 LPH
GPH @ 6.0'
1200 GPH / 4542 LPH
900 GPH / 3406 LPH
• Designed to install directly into any valve or fitting with 1" NPT threads • Pump must be installed below the water line
For use with 3/4” (19mm) hose.
ORDER NO. 272-00078
Mfr. No. 78
VARIABLE FLOW CONTROL VALVE
The Variable Flow Control Valve allows increases and decreases of flow from the pump with no damage at all to the pump. Range includes fully open flow to zero flow.
ORDER NO. 272-00075 Mfr. No. 75
