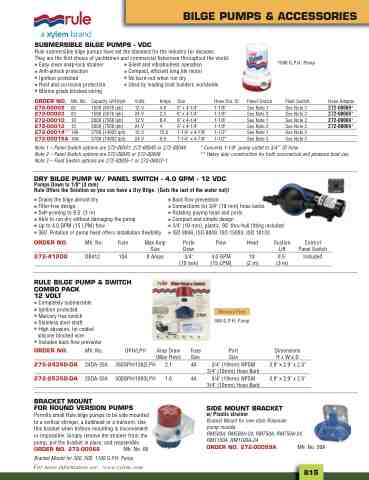

Page 847 - 2025 Parts & Accessories Catalogue

BILGE PUMPS & ACCESSORIES
SUBMERSIBLE BILGE PUMPS - VDC
Rule submersible bilge pumps have set the standard for the industry for decades. They are the first choice of yachtsmen and commercial fishermen throughout the world.
• Easy clean snap-lock strainer • Anti-airlock protection • Ignition protected • Rust and corrosion protection • Marine grade blocked wiring
• Silent and vibrationless operation • Compact, efficient long life motor • No burn-out when run dry • Used by leading boat builders worldwide
1500 G.P.H. Pump
Float Switch
See Note 3
See Note 3
See Note 3
See Note 3
See Note 3
See Note 3
ORDER NO.
272-00002
272-00003
272-00010
272-00012
272-00014**
272-00016A
Mfr. No.
02
03
10
12
14A
16A
Capacity GPH/lph
1500 (5676 lph)
1500 (5676 lph)
2000 (7568 lph)
2000 (7568 lph)
3700 (14002 lph)
3700 (14002 lph)
Volts Amps
12V 4.8
24V 2.3
12V 8.4
24V 4
12V 15.5
24V 6.9
Size
6" x 4-1/4"
6" x 4-1/4"
6" x 4-1/4"
6" x 4-1/4"
7-1/4" x 4-7/8"
7-1/4" x 4-7/8"
Hose Dia. ID
1-1/8"
1-1/8"
1-1/8"
1-1/8"
1-1/2”
1-1/2”
Panel Switch
See Note 1
See Note 2
See Note 1
See Note 2
See Note 1
See Note 2
Hose Adapter
272-00069*
272-00069*
272-00069*
272-00069*
-
Note 1 – Panel Switch options are 272-00041, 272-00045 or 272-00049 * Converts 1-1/8” pump outlet to 3/4"” ID hose Note 2 – Panel Switch options are 272-00045 or 272-00049 ** Heavy duty construction for both commercial and pleasure boat use. Note 3 – Float Switch options are 272-00035-1 or 272-00037-1
DRY BILGE PUMP W/ PANEL SWITCH - 4.0 GPM - 12 VDC
Pumps Down to 1/8" (3 mm) Rule Offers the Solution so you can have a Dry Bilge. (Gets the last of the water out)!
• Drains the bilge almost dry • Filter-free design • Self-priming to 9.5' (3 m) • Able to run dry without damaging the pump • Up to 4.0 GPM (15 LPM) flow
• 360˚ Rotation of pump head offers installation flexibility
• Back flow prevention • Connections for 3/4" (19 mm) hose barbs • Rotating puymp head and ports • Compact and simple design • 3/4" (19 mm), plastic, 90˚ thru-hull fitting included • ISO 8846, ISO 8849, ISO 15083, ISO 10133
ORDER NO. Mfr. No. Fuse
272-41200 DB412 10A
RULE BILGE PUMP & SWITCH COMBO PACK 12 VOLT • Completely submersible
• Ignition protected • Mercury free switch • Stainless steel shaft • High abrasion, tin coated
silicone blocked wire • Includes back flow preventer
Max Amp Ports Size Draw
8 Amps 3/4" (19 mm)
Flow
4.0 GPM (15 LPM)
Head Suction Lift
10' 9.5' (2 m) (3 m)
Control Panel Switch
Included
Mercury Free
ORDER NO.
272-24350-DA
272-25350-DA
Mfr. No.
24DA-35A
25DA-35A
GPH/LPH Amp Draw (Max Flow)
360GPH/1362LPH 2.1
500GPH/1893LPH 1.6
360 G.P.H. Pump
Fuse Port Size Size
4A 3/4" (19mm) NPSM 3/4" (19mm) Hose Barb
4A 3/4" (19mm) NPSM 3/4" (19mm) Hose Barb
Dimensions H x W x D
3.9" x 2.9" x 2.5"
3.9" x 2.9" x 2.5"
BRACKET MOUNT FOR ROUND VERSION PUMPS Permits small Rule bilge pumps to be side mounted to a vertical stringer, a bulkhead or a transom. Use this bracket when bottom mounting is inconvenient or impossible. Simply remove the strainer from the pump, put the bracket in place, and reassemble. ORDER NO. 272-00066 Mfr. No. 66
Bracket Mount for 360, 500, 1100 G.P.H. Pump
SIDE MOUNT BRACKET
w/ Plastic strainer
Bracket Mount for new style Rulemate pump models RM500A, RM500A-24, RM750A, RM750A-24, RM1100A, RM1100A-24
ORDER NO. 272-00099A
Mfr. No. 99A
For more information see: www.xylem.com
