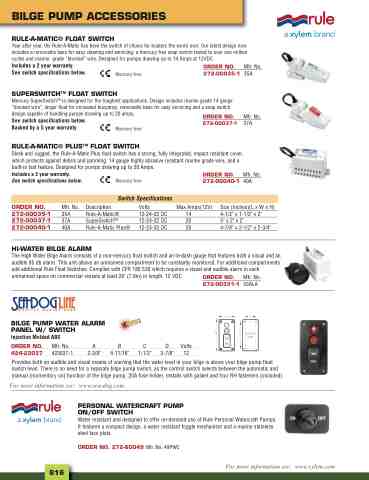

Page 848 - 2025 Parts & Accessories Catalogue

BILGE PUMP ACCESSORIES
RULE-A-MATIC® FLOAT SWITCH
Year after year, the Rule-A-Matic has been the switch of choice for boaters the world over. Our latest design now includes a removable base for easy cleaning and servicing, a mercury free snap switch tested to over one million cycles and marine grade “blocked” wire. Designed for pumps drawing up to 14 Amps at 12VDC. Includes a 2 year warranty.
ORDER NO.
Mfr. No.
See switch specifications below.
Mercury free 272-00035-1 35A
SUPERSWITCHTM FLOAT SWITCH
Mercury SuperSwitchTM is designed for the toughest applications. Design includes marine grade 14 gauge “blocked wire”, larger float for increased buoyancy, removable base for easy servicing and a snap switch
design capable of handling pumps drawing up to 20 amps.
ORDER NO.
Mfr. No.
See switch specifications below. Backed by a 5 year warranty
272-00037-1 37A
Mercury free
RULE-A-MATIC® PLUSTM FLOAT SWITCH
Sleek and rugged, the Rule-A-Matic Plus float switch has a strong, fully integrated, impact resistant cover, which protects against debris and jamming. 14 gauge highly abrasive resistant marine grade wire, and a built-in test feature. Designed for pumps drawing up to 20 Amps. Includes a 2 year warranty.
See switch specifications below.
Mercury free
Switch Specifications
Volts
12-24-32 DC
12-24-32 DC
12-24-32 DC
272-00040-1 40A
ORDER NO.
272-00035-1
272-00037-1
272-00040-1
Mfr. No.
35A
37A
40A
Description
Rule-A-Matic®
SuperSwitchTM
Rule-A-Matic Plus®
Max Amps(12V)
14
20
20
Size (Inches)(L x W x H)
4-1/2" x 1-1/2" x 2"
5" x 2" x 2"
4-7/8" x 2-1/2" x 2-3/4"
HI-WATER BILGE ALARM
The High Water Bilge Alarm consists of a non-mercury float switch and an in-dash gauge that features both a visual and an audible 85 db alarm. This unit allows an unmanned compartment to be constantly monitored. For additional compartments add additional Rule Float Switches. Complies with CFR 182.530 which requires a visual and audible alarm in each unmanned space on commercial vessels at least 26’ (7.9m) in length. 12 VDC
ORDER NO. Mfr. No.
ORDER NO. Mfr. No.
272-00331-1 33ALA
BILGE PUMP WATER ALARM PANEL W/ SWITCH Injection Molded ABS
ORDER NO. Mfr. No. A B 424-23037 423037-1 2-3/8" 4-11/16"
C D
Volts
1-1/2" 3-7/8" 12
Provides both an audible and visual means of warning that the water level in your bilge is above your bilge pump float switch level. There is no need for a separate bilge pump switch, as the control switch selects between the automatic and manual (momentary on) function of the bilge pump. 20A fuse holder. Installs with gasket and four RH fasteners (included).
For more information see: www.sea-dog.com
PERSONAL WATERCRAFT PUMP ON/OFF SWITCH Water resistant and designed to offer on-demand use of Rule Personal Watercraft Pumps. It features a compact design, a water resistant toggle mechanism and a marine stainless steel face plate.
ORDER NO. 272-60049 Mfr. No. 49PWC
For more information see: www.xylem.com
816
