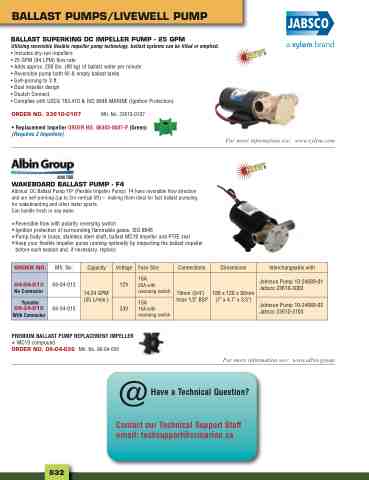

Page 864 - 2025 Parts & Accessories Catalogue

BALLAST PUMPS/LIVEWELL PUMP
BALLAST SUPERKING DC IMPELLER PUMP - 25 GPM
Utilizing reversible flexible impeller pump technology, ballast systems can be filled or emptied.
• Includes dry-run impellers • 25 GPM (94 LPM) flow rate • Adds approx. 200 lbs. (89 kg) of ballast water per minute • Reversible pump both fill & empty ballast tanks • Self-priming to 3 ft. • Dual impeller design • Deutch Connect • Complies with USCG 183.410 & ISO 8846 MARINE (Ignition Protection)
ORDER NO. 33610-0107 Mfr. No. 33610-0107 • Replacement Impeller ORDER NO. 06303-0007-P (Green)
(Requires 2 Impellers)
WAKEBOARD BALLAST PUMP - F4
Albinus’ DC Ballast Pump FIP (Flexible Impeller Pump) F4 have reversible flow direction and are self-priming (up to 3m vertical lift) – making them ideal for fast ballast pumping for wakeboarding and other water sports. Can handle fresh or sea water.
•Reversible flow with polarity reversing switch •Ignition protection of surrounding flammable gases, ISO 8846 •Pump body in brass, stainless steel shaft, ballast MC19 impeller and PTFE seal •Keep your flexible impeller pump running optimally by inspecting the ballast impeller
before each season and, if necessary, replace.
PREMIUM BALLAST PUMP REPLACEMENT IMPELLER
• MC19 compound ORDER NO. 06-04-036 Mfr. No. 06-04-036
For more information see: www.xylem.com
For more information see: www.albin.group
ORDER NO.
Mfr. No.
Capacity
Voltage
Fuse Size
Connections
Dimensions
Interchangeable with
04-04-013
No Connector
04-04-013
14.24 GPM (55 L/min.)
12V
16A 25A with reversing switch
19mm (3/4") hose 1/2" BSP
180 x 120 x 90mm (7" x 4.7" x 3.5")
Johnson Pump 10-24689-01 Jabsco 23610-3003
Yamaha
04-34-015
With Connector
04-34-015
24V
15A 15A with reversing switch
Johnson Pump 10-24689-02 Jabsco 23610-3103
@Have a Technical Question?
Contact our Technical Support Staff email: techsupport@ccmarine.ca
832
