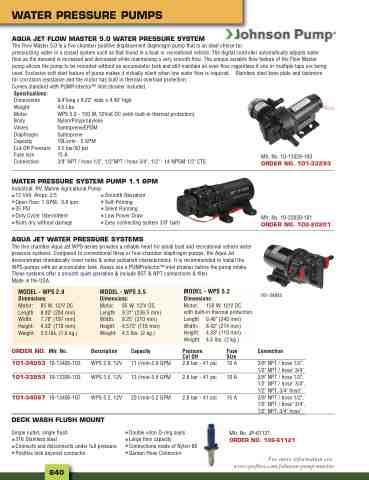

Page 872 - 2025 Parts & Accessories Catalogue

WATER PRESSURE PUMPS
AQUA JET FLOW MASTER 5.0 WATER PRESSURE SYSTEM
The Flow Master 5.0 is a five chamber positive displacement diaphragm pump that is an ideal choice for pressurizing water in a closed system such as that found in a boat or recreational vehicle. The digital controller automatically adjusts water flow as the demand is increased and decreased while maintaining a very smooth flow. The unique variable flow feature of the Flow Master pump allows the pump to be mounted without an accumulator tank and still maintain an even flow regardless if one or multiple taps are being
used. Exclusive soft start feature of pump makes it virtually silent when low water flow is required. for corrosion resistance and the motor has built in thermal overload protection. Comes standard with PUMProtectorTM inlet strainer included.
Stainless steel base plate and fasteners
Mfr. No. 10-13329-103
ORDER NO. 101-33293
Mfr. No. 10-22020-101
ORDER NO. 102-20201
01-34053
Connection
3/8" NPT / hose 1/2", 1/2" NPT / hose" 3/4"
3/8" NPT / hose 1/2", 1/2" NPT / hose" 3/4", 1/2" NPT, 3/4" hose"
3/8" NPT / hose 1/2", 1/2" NPT / hose" 3/4", 1/2" NPT, 3/4" hose"
Specifications:
Dimensions Weight Motor Body Valves Diaphragm Capacity Cut-Off Pressure Fuse size Connection
9.4"long x 8.22" wide x 4.49" high 4.5 Lbs. WPS 5.0 - 150 W, 12Volt DC (with built-in thermal protection) Nylon/Polypropylene Santoprene/EPDM Santoprene 19L/min - 5 GPM 3.5 bar/50 psi 15 A 3/8" NPT / hose 1/2", 1/2"NPT / hose 3/4", 1/2" - 14 NPSM 1/2" CTS
WATER PRESSURE SYSTEM PUMP 1.1 GPM
Industrial, RV, Marine Agricultural Pump
•12 Volt, Amps: 2.5 •Open Flow: 1 GPM, 3.8 lpm •35 PSI •Duty Cycle: Intermittent •Runs dry without damage
• Smooth Operation • Self-Priming • Silent Running • Low Power Draw • Easy connecting system 3/8" barb
AQUA JET WATER PRESSURE SYSTEMS
The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise & water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Aways use a PUMProtectorTM inlet strainer before the pump intake. These systems offer a smooth quiet operation & include BST & NPT connections & filter.
Made in the USA.
ORDER NO. Mfr. No.
Description
WPS 2.9, 12V
WPS 3.5, 12V
WPS 5.2, 12V
Capacity
11 I/min-2.9 GPM
13 I/min-3.5 GPM
20 I/min-5.2 GPM
Pressure Cut Off
2.8bar-41psi
2.8bar-41psi
2.8bar-41psi
Fuse Size
10 A
10 A
15 A
MODEL - WPS 2.9 Dimensions:
MODEL - WPS 3.5 Dimensions:
MODEL - WPS 5.2 Dimensions: Motor: 150 W, 12/V DC with built-in thermal protection
1
Motor: Length Width: Height: Weight:
85 W, 12/V DC 8.02" (204 mm) 7.76" (197 mm) 4.33" (110 mm) 3.5 Ibs. (1.6 kg.)
Motor: Length Width: Height: Weight:
85 W, 12/V DC 9.31" (236.5 mm) 8.25" (210 mm) 4.575" (116 mm) 4.5 Ibs. (2 kg.)
Length Width: Height: Weight:
9.46" (240 mm) 8.42" (214 mm) 4.33" (110 mm) 4.5 Ibs. (2 kg.)
101-34053
101-33953
101-34067
10-13405-103
10-13395-103
10-13406-107
DECK WASH FLUSH MOUNT
Single outlet, single flush •316 Stainless steel •Connects and disconnects under full pressure •Positive lock bayonet connector
•Double viton O-ring seals •Large flow capacity •Connections made of Nylon 66 •Garden Hose Connector
Mfr. No. JP-61121
ORDER NO. 106-61121
For more information see: www.spxflow.com/johnson-pump-marine
840
