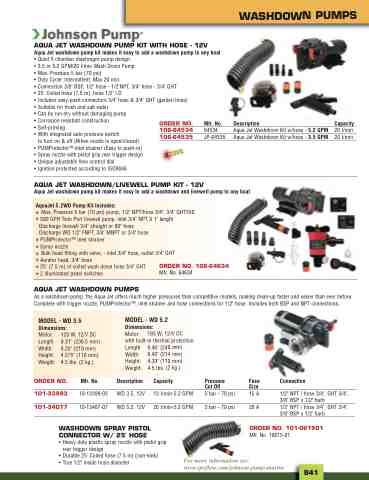

Page 873 - 2025 Parts & Accessories Catalogue

MODEL - WD 5.2 Dimensions: Motor: 185 W, 12/V DC with built-in thermal protection
Length Width: Height: Weight:
9.46" (240 mm) 8.42" (214 mm) 4.33" (110 mm) 4.5 Ibs. (2 kg.)
WASHDOWN PUMPS
AQUA JET WASHDOWN PUMP KIT WITH HOSE - 12V
Aqua Jet washdown pump kit makes it easy to add a washdown pump to any boat
• Quiet 5 chamber diaphragm pump design • 3.5 or 5.2 GPM/20 I/min Wash Down Pump • Max. Pressure 5 bar (70 psi) • Duty Cycle: Intermittent, Max 20 min. • Connection 3/8" BSP, 1/2" hose - 1/2"NPT, 3/4" hose - 3/4" GHT • 25' Coiled hose (7.5 m), hose 1/2" I.D • Includes easy-push connectors 3/4" hose & 3/4" GHT (garden hose) • Suitable for fresh and salt water • Can be run dry without damaging pump • Corrosion resistant construction • Self-priming • With integrated auto pressure switch
to turn on & off (When nozzle is open/closed) • PUMProtectorTM inlet strainer (Easy to push-in) • Spray nozzle with pistol grip rear trigger design • Unique adjustable flow control dial • Ignition protected according to ISO8846
ORDER NO. Mfr. No.
106-64534 64534
106-64535 JP-64535
Description
Aqua Jet Washdown Kit w/hose - 5.2 GPM
Aqua Jet Washdown Kit w/hose - 3.5 GPM
Capacity
20 I/min
20 I/min
AQUA JET WASHDOWN/LIVEWELL PUMP KIT - 12V
Aqua Jet washdown pump kit makes it easy to add a washdown and livewell pump to any boat
AquaJet 5.2WD Pump Kit Includes:
• Max. Pressure 5 bar (70 psi) pump, 1/2" NPT/hose 3/4", 3/4" GHT550 • 500 GPH Twin Port livewell pump, inlet 3/4" NPT X 1" length
Discharge livewell 3/4" straight or 90o hose
Discharge WD 1/2" FNPT, 3/4" MNPT or 3/4" hose • PUMProtectorTM inlet strainer • Spray nozzle • Bulk head fitting with valve, - inlet 3/4" hose, outlet 3/4" GHT • Aerator head, 3/4" hose
• 25' (7.5 m) of coiled wash down hose 3/4" GHT • 2 illuminated panel switches
AQUA JET WASHDOWN PUMPS
ORDER NO. 106-64634
Mfr. No. 64634
As a washdown pump, the Aqua Jet offers much higher pressures than competitive models, making clean-up faster and easier than ever before. Complete with trigger nozzle, PUMProtectorTM, inlet strainer and hose connections for 1/2" hose. Includes both BSP and NPT connections.
MODEL - WD 3.5 Dimensions:
Motor: Length Width: Height: Weight:
120 W, 12/V DC 9.31" (236.5 mm) 8.25" (210 mm) 4.575" (116 mm) 4.5 Ibs. (2 kg.)
ORDER NO.
101-33993
101-34077
Mfr. No.
10-13399-03
10-13407-07
Description
WD 3.5, 12V
WD 5.2, 12V
Capacity
13 I/min-5.2 GPM
20 I/min-5.2 GPM
Pressure Cut Off
5 bar - 70 psi
5 bar - 70 psi
Fuse Size
15 A
20 A
Connection
1/2" NPT / hose 3/4", GHT 3/4", 3/8" BSP x 1/2" barb
1/2" NPT / hose 3/4", GHT 3/4", 3/8" BSP x 1/2" barb
WASHDOWN SPRAY PISTOL CONNECTOR W/ 25' HOSE • Heavy duty plastic spray nozzle with pistol grip
rear trigger design • Durable 25' Coiled hose (7.5 m) (non-kink) • True 1/2" inside hose diameter
ORDER NO. 101-061501
Mfr. No. 10615-01
For more information see: www.spxflow.com/johnson-pump-marine
