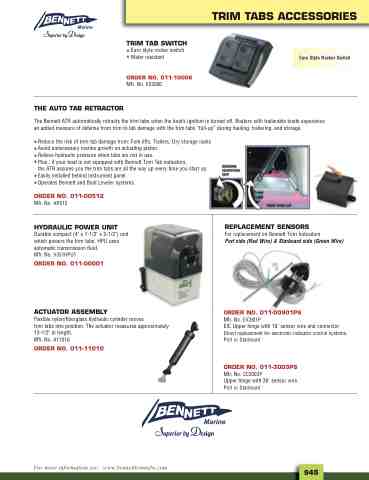

Page 977 - 2025 Parts & Accessories Catalogue

TRIM TABS ACCESSORIES
TRIM TAB SWITCH
• Euro style rocker switch • Water resistant
ORDER NO. 011-10006
Mfr. No. ES2000
The Bennett ATR automatically retracts the trim tabs when the boat’s ignition is turned off. Boaters with trailerable boats experience an added measure of defense from trim to tab damage with the trim tabs “full-up” during hauling, trailering, and storage.
Euro Style Rocker Switch
THE AUTO TAB RETRACTOR
•Reduce the risk of trim tab damage from: Fork lifts, Trailers, Dry storage racks •Avoid unnecessary marine growth on actuating piston. •Relieve hydraulic pressure when tabs are not in use. •Plus...if your boat is not equipped with Bennett Trim Tab indicators,
the ATR assures you the trim tabs are all the way up every time you start up. •Easily installed behind instrument panel. •Operates Bennett and Boat Leveler systems.
ORDER NO. 011-00512
Mfr. No. AR512
HYDRAULIC POWER UNIT
Durable compact (4" x 7-1/2" x 5-1/2") unit which powers the trim tabs. HPU uses automatic transmission fluid. Mfr. No. V351HPU1
ORDER NO. 011-00001
ACTUATOR ASSEMBLY
Flexible nylon/fiberglass hydraulic cylinder moves trim tabs into position. The actuator measures approximately 13-1/2" in length. Mfr. No. A1101A
ORDER NO. 011-11010
REPLACEMENT SENSORS
For replacement on Bennett Trim Indicators
Port side (Red Wire) & Starboard side (Green Wire)
ORDER NO. 011-00901PS
Mfr. No. EIC901P EIC Upper hinge with 10' sensor wire and connector Direct replacement for electronic indicator control systems. Port or Starboard
ORDER NO. 011-3003PS
Mfr. No. CC3003P Upper hinge with 30' sensor wire. Port or Starboard
For more information see: www.bennetttrimtabs.com
945
