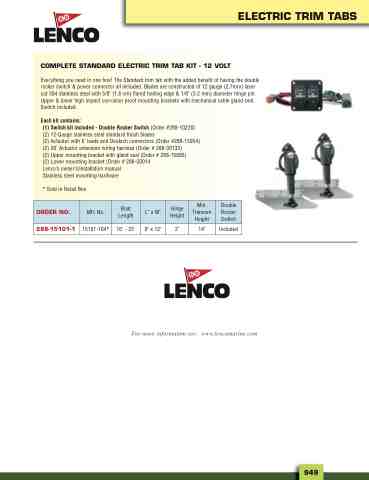

Page 981 - 2025 Parts & Accessories Catalogue
P. 981
ELECTRIC TRIM TABS
COMPLETE STANDARD ELECTRIC TRIM TAB KIT - 12 VOLT
Everything you need in one box! The Standard trim tab with the added benefit of having the double rocker switch & power connector all included. Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper & lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
Each kit contains: (1) Switch kit included - Double Rocker Switch (Order #288-10220) (2) 12-Gauge stainless steel standard finish blades (2) Actuator with 6' leads and Deutsch connectors (Order #288-15054) (2) 20' Actuator extension wiring harness (Order # 288-30133) (2) Upper mounting bracket with gland seal (Order # 288-15085) (2) Lower mounting bracket (Order # 288-50014 Lenco’s owner’s/installation manual Stainless steel mounting hardware
* Sold in Retail Box
ORDER NO.
Mfr. No.
Boat Length
L" x W"
Hinge Height
Min. Transom Height
Double Rocker Switch
288-15101-1
15101-104*
16' - 25'
9" x 12"
2"
14"
Included
For more information see: www.lencomarine.com
