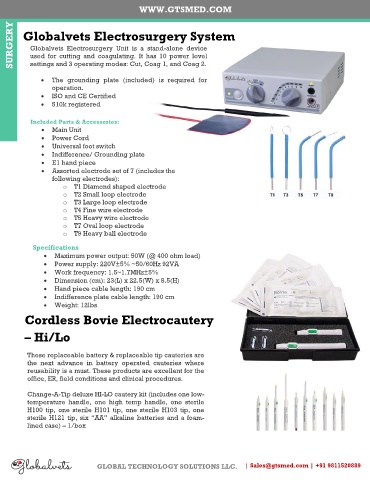

Page 46 - Globalvets Brochure

WWW.GTSMED.COM

Globalvets Electrosurgery System

SURGERY Globalvets Electrosurgery Unit is a stand-alone device
used for cutting and coagulating. It has 10 power level
settings and 3 operating modes: Cut, Coag 1, and Coag 2.
• The grounding plate (included) is required for

operation.

• ISO and CE Certified
• 510k registered

Included Parts & Accessories:
• Main Unit
• Power Cord
• Universal foot switch
• Indifference/ Grounding plate
• E1 hand piece
• Assorted electrode set of 7 (includes the
following electrodes):
o T1 Diamond shaped electrode
o T2 Small loop electrode
o T3 Large loop electrode
o T4 Fine wire electrode
o T5 Heavy wire electrode
o T7 Oval loop electrode
o T9 Heavy ball electrode

Specifications
• Maximum power output: 50W (@ 400 ohm load)
• Power supply: 220V±5% ~50/60Hz 92VA
• Work frequency: 1.5~1.7MHz±5%
• Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
• Hand piece cable length: 190 cm
• Indifference plate cable length: 190 cm
• Weight: 12lbs

Cordless Bovie Electrocautery

– Hi/Lo

These replaceable battery & replaceable tip cauteries are
the next advance in battery operated cauteries where
reusability is a must. These products are excellent for the
office, ER, field conditions and clinical procedures.

Change-A-Tip deluxe HI-LO cautery kit (includes one low-
temperature handle, one high temp handle, one sterile
H100 tip, one sterile H101 tip, one sterile H103 tip, one
sterile H121 tip, six “AA” alkaline batteries and a foam-
lined case) – 1/box
