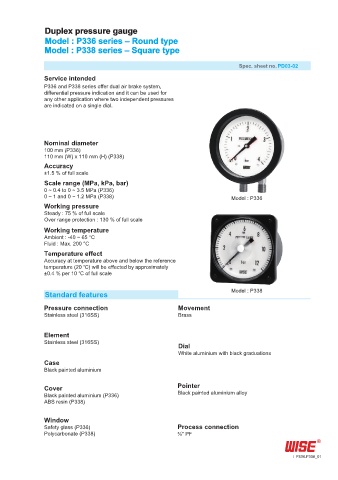

Duplex pressure gauge
Model : P336 series – Round type
Model : P338 series – Square type

Spec. sheet no. PD03-02
Service intended
P336 and P338 series offer dual air brake system,
differential pressure indication and it can be used for
any other application where two independent pressures
are indicated on a single dial.

Nominal diameter
100 mm (P336)
110 mm (W) x 110 mm (H) (P338)
Accuracy
±1.5 % of full scale
Scale range (MPa, kPa, bar)
0 ~ 0.4 to 0 ~ 3.5 MPa (P336)
0 ~ 1 and 0 ~ 1.2 MPa (P338) Model : P336
Working pressure
Steady : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature
Ambient : -40 ~ 65 °C
Fluid : Max. 200 °C
Temperature effect
Accuracy at temperature above and below the reference
temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features Model : P338

Pressure connection Movement
Stainless steel (316SS) Brass

Element
Stainless steel (316SS)
Dial
White aluminium with black graduations
Case
Black painted aluminium

Cover Pointer
Black painted aluminium (P336) Black painted aluminium alloy
ABS resin (P338)

Window
Safety glass (P336) Process connection
Polycarbonate (P338) ⅜" PF

P336.P338_01
