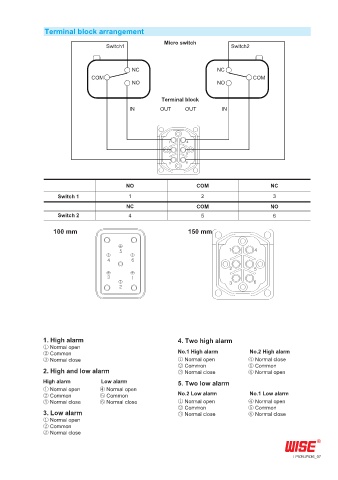

Terminal block arrangement

Micro switch
Switch1 Switch2

NC NC
COM COM
NO NO

Terminal block
IN OUT OUT IN

NO COM NC
Switch 1 1 2 3
NC COM NO
Switch 2 4 5 6

100 mm 150 mm

1. High alarm 4. Two high alarm
˝ Normal open
˞ Common No.1 High alarm No.2 High alarm
˟ Normal close ˝ Normal open ˠ Normal close
˞ Common ˡ Common
2. High and low alarm ˟ Normal close ˢ Normal open
High alarm Low alarm 5. Two low alarm
˝ Normal open ˠ Normal open
˞ Common ˡ Common No.2 Low alarm No.1 Low alarm
˟ Normal close ˢ Normal close ˝ Normal open ˠ Normal open
˞ Common ˡ Common
3. Low alarm ˟ Normal close ˢ Normal close
˝ Normal open
˞ Common
˟ Normal close
