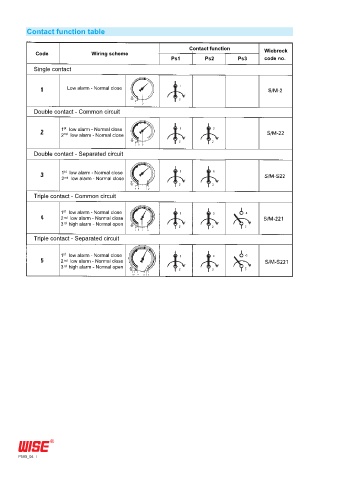

Contact function table

Contact function Wiebrock
Code Wiring scheme
Ps1 Ps2 Ps3 code no.
Single contact

Low alarm - Normal close

Double contact - Common circuit

1 low alarm - Normal close
st
nd
2 low alarm - Normal close
Double contact - Separated circuit

st
1 low alarm - Normal close
2 low alarm - Normal close
nd
Triple contact - Common circuit

st
1 low alarm - Normal close
nd
2 low alarm - Normal close
rd
3 high alarm - Normal open
Triple contact - Separated circuit

1 low alarm - Normal close
st
2 low alarm - Normal close
nd
rd
3 high alarm - Normal open

P590_04
