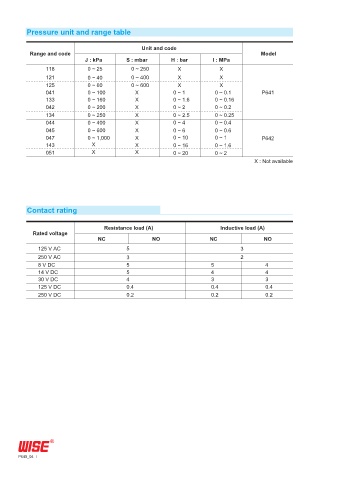

Page 240 - 2019종합카다로그_Pressure gauge

Pressure unit and range table

Unit and code
Range and code Model
J : kPa S : mbar H : bar I : MPa
118 0 ~ 25 0 ~ 250 X X
121 0 ~ 40 0 ~ 400 X X
125 0 ~ 60 0 ~ 600 X X
041 0 ~ 100 X 0 ~ 1 0 ~ 0.1 P641
133 0 ~ 160 X 0 ~ 1.6 0 ~ 0.16
042 0 ~ 200 X 0 ~ 2 0 ~ 0.2
134 0 ~ 250 X 0 ~ 2.5 0 ~ 0.25
044 0 ~ 400 X 0 ~ 4 0 ~ 0.4
045 0 ~ 600 X 0 ~ 6 0 ~ 0.6
047 0 ~ 1,000 X 0 ~ 10 0 ~ 1 P642
143 X X 0 ~ 16 0 ~ 1.6
051 X X 0 ~ 20 0 ~ 2
X : Not available

Contact rating

Resistance load (A) Inductive load (A)
Rated voltage
NC NO NC NO
125 V AC 5 3
250 V AC 3 2
8 V DC 5 5 4
14 V DC 5 4 4
30 V DC 4 3 3
125 V DC 0.4 0.4 0.4
250 V DC 0.2 0.2 0.2
