P. 254

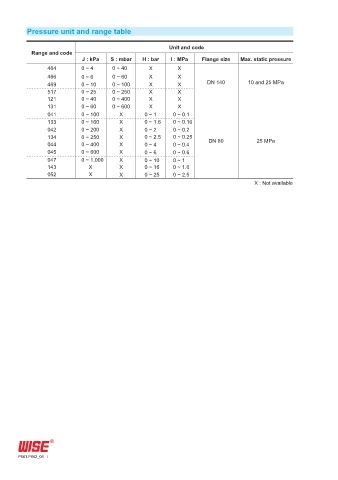

Pressure unit and range table
Unit and code
Range and code
J : kPa S : mbar H : bar I : MPa Flange size Max. static pressure
464 0 ~ 4 0 ~ 40 X X
466 0 ~ 6 0 ~ 60 X X
469 0 ~ 10 0 ~ 100 X X DN 140 10 and 25 MPa
517 0 ~ 25 0 ~ 250 X X
121 0 ~ 40 0 ~ 400 X X
131 0 ~ 60 0 ~ 600 X X
041 0 ~ 100 X 0 ~ 1 0 ~ 0.1
133 0 ~ 160 X 0 ~ 1.6 0 ~ 0.16
042 0 ~ 200 X 0 ~ 2 0 ~ 0.2
134 0 ~ 250 X 0 ~ 2.5 0 ~ 0.25
044 0 ~ 400 X 0 ~ 4 0 ~ 0.4 DN 80 25 MPa
045 0 ~ 600 X 0 ~ 6 0 ~ 0.6
047 0 ~ 1,000 X 0 ~ 10 0 ~ 1
143 X X 0 ~ 16 0 ~ 1.6
052 X X 0 ~ 25 0 ~ 2.5
X : Not available
P661.P662_06
