Page 296 - 2019종합카다로그_Pressure gauge

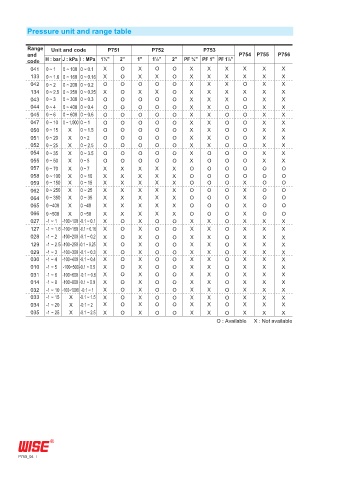

Pressure unit and range table

Range Unit and code P751 P752 P753
and P754 P755 P756
code H : bar J : kPa I : MPa 1½" 2" 1" 1½" 2" PF ¾" PF 1" PF 1½"
041 0 ~ 1 0 ~ 100 0 ~ 0.1 X O X O O X X X X X X
133 0 ~ 1.6 0 ~ 160 0 ~ 0.16 X O X X O X X X X X X
042 0 ~ 2 0 ~ 200 0 ~ 0.2 O O O O O X X X O X X
134 0 ~ 2.5 0 ~ 250 0 ~ 0.25 X O X X O X X X X X X
043 0 ~ 3 0 ~ 300 0 ~ 0.3 O O O O O X X X O X X
044 0 ~ 4 0 ~ 400 0 ~ 0.4 O O O O O X X O O X X
045 0 ~ 6 0 ~ 600 0 ~ 0.6 O O O O O X X O O X X
047 0 ~ 10 0 ~ 1,000 0 ~ 1 O O O O O X X O O X X
050 0 ~ 15 X 0 ~ 1.5 O O O O O X X O O X X
051 0 ~ 20 X 0 ~ 2 O O O O O X X O O X X
052 0 ~ 25 X 0 ~ 2.5 O O O O O X X O O X X
054 0 ~ 35 X 0 ~ 3.5 O O O O O X O O O X X
055 0 ~ 50 X 0 ~ 5 O O O O O X O O O X X
057 0 ~ 70 X 0 ~ 7 X X X X X O O O O O O
058 0 ~ 100 X 0 ~ 10 X X X X X O O O O O O
059 0 ~ 150 X 0 ~ 15 X X X X X O O O X O O
062 0 ~ 250 X 0 ~ 25 X X X X X O O O X O O
064 0 ~ 350 X 0 ~ 35 X X X X X O O O X O O
065 0 ~400 X 0 ~40 X X X X X O O O X O O
066 0 ~500 X 0 ~50 X X X X X O O O X O O
027 -1 ~ 1 -100~100 -0.1 ~ 0.1 X O X O O X X O X X X
127 -1 ~ 1.6 -100~160 -0.1 ~ 0.16 X O X O O X X O X X X
028 -1 ~ 2 -100~200 -0.1 ~ 0.2 X O X O O X X O X X X
129 -1 ~ 2.5 -100~250 -0.1 ~ 0.25 X O X O O X X O X X X
029 -1 ~ 3 -100~300 -0.1 ~ 0.3 X O X O O X X O X X X
030 -1 ~ 4 -100~400 -0.1 ~ 0.4 X O X O O X X O X X X
010 -1 ~ 5 -100~500-0.1 ~ 0.5 X O X O O X X O X X X
031 -1 ~ 6 -100~600 -0.1 ~ 0.6 X O X O O X X O X X X
014 -1 ~ 9 -100~900 -0.1 ~ 0.9 X O X O O X X O X X X
032 -1 ~ 10 -100~1000 -0.1 ~ 1 X O X O O X X O X X X
033 -1 ~ 15 X -0.1 ~ 1.5 X O X O O X X O X X X
034 -1 ~ 20 X -0.1 ~ 2 X O X O O X X O X X X
035 -1 ~ 25 X -0.1 ~ 2.5 X O X O O X X O X X X
O : Available X : Not available

P750_04
