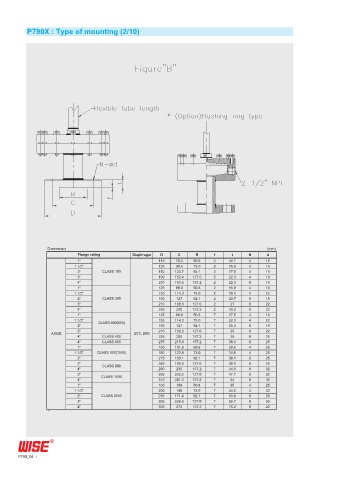

P790X : Type of mounting (2/10)

Dimensions (mm)
Flange rating Diaphragm D C R f t N d
1" 110 79.4 50.8 2 12.7 4 16
1 1/2" 125 98.4 73.0 2 15.9 4 16
2" CLASS 150 150 120.7 92.1 2 17.5 4 19
3" 190 152.4 127.0 2 22.3 4 19
4" 230 190.5 157.2 2 22.3 8 19
1" 125 88.9 50.8 2 15.9 4 19
1 1/2" 155 114.3 73.0 2 19.1 4 22
2" CLASS 300 160 127 92.1 2 20.7 8 19
3" 210 168.3 127.0 2 27 8 22
4" 255 200 157.2 2 30.2 8 22
1" 125 88.9 50.8 7 17.5 4 19
1 1/2" CLASS 400(600) 155 114.3 73.0 7 22.3 4 22
2" 165 127 92.1 7 25.4 8 19
3" 210 168.3 127.0 7 35 8 22
ASME Ø70, Ø89
4" CLASS 400 255 200 157.2 7 35 8 25
4" CLASS 600 275 215.9 157.2 7 38.1 8 25
1" 150 101.6 50.8 7 28.6 4 25
1 1/2" CLASS 900(1500) 180 123.8 73.0 7 31.8 4 29
2" 215 165.1 92.1 7 38.1 8 25
3" CLASS 900 240 190.5 127.0 7 38.1 8 25
4" 290 235 157.2 7 44.5 8 32
3" CLASS 1500 265 203.2 127.0 7 47.7 8 32
4" 310 241.3 157.2 7 54 8 35
1" 160 108 50.8 7 35 4 25
1 1/2" 205 146 73.0 7 44.5 4 32
2" CLASS 2500 235 171.4 92.1 7 50.9 8 29
3" 305 228.6 127.0 7 66.7 8 35
4" 355 273 157.2 7 76.2 8 42
Dimensions (mm)
Flange rating Diaphragm D C R f t N d
25A 95 75 59 1 9 4 12
40A 120 95 75 2 10 4 15
50A 5K 130 105 85 2 12 4 15

P790_04
