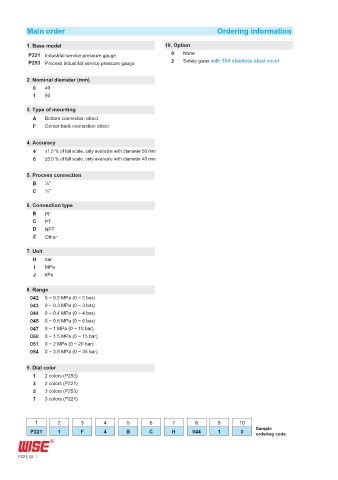

Main order Ordering information

1. Base model 10. Option
P221 Industrial service pressure gauge 0 None
P253 Process industrial service pressure gauge 2 Safety glass with 304 stainless steel cover

2. Nominal diameter (mm)
0 40
1 50

3. Type of mounting
A Bottom connection direct
F Center back connection direct

4. Accuracy
4 ±1.5 % of full scale, only available with diameter 50 mm
6 ±3.0 % of full scale, only available with diameter 40 mm

5. Process connection
B ⅛"
C ¼"

6. Connection type
B PF
C PT
D NPT
Z Other

7. Unit
H bar
I MPa
J kPa

8. Range
042 0 ~ 0.2 MPa (0 ~ 2 bar)
043 0 ~ 0.3 MPa (0 ~ 3 bar)
044 0 ~ 0.4 MPa (0 ~ 4 bar)
045 0 ~ 0.6 MPa (0 ~ 6 bar)
047 0 ~ 1 MPa (0 ~ 10 bar)
050 0 ~ 1.5 MPa (0 ~ 15 bar)
051 0 ~ 2 MPa (0 ~ 20 bar)
054 0 ~ 3.5 MPa (0 ~ 35 bar)

9. Dial color
1 2 colors (P253)
3 2 colors (P221)
5 3 colors (P253)
7 3 colors (P221)

1 2 3 4 5 6 7 8 9 10
Sample
P221 1 F 4 B C H 044 1 0 ordering code

P221_02
