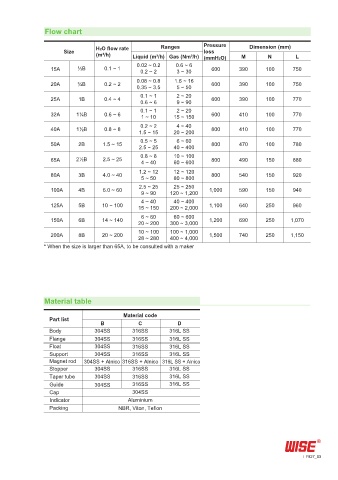

Flow chart

H2O flow rate Ranges Pressure Dimension (mm)
Size loss
(m³/h) Liquid (m³/h) Gas (Nm³/h) (mmH2O) M N L
0.02 ~ 0.2 0.6 ~ 6
15A ½B 0.1 ~ 1 0.2 ~ 2 3 ~ 30 600 390 100 750
0.08 ~ 0.8 1.6 ~ 16
20A ¾B 0.2 ~ 2 600 390 100 750
0.35 ~ 3.5 5 ~ 50
0.1 ~ 1 2 ~ 20
25A 1B 0.4 ~ 4 600 390 100 770
0.6 ~ 6 9 ~ 90
0.1 ~ 1 2 ~ 20
32A 1¼B 0.6 ~ 6 1 ~ 10 15 ~ 150 600 410 100 770
0.2 ~ 2 4 ~ 40
40A 1½B 0.8 ~ 8 800 410 100 770
1.5 ~ 15 20 ~ 200
0.5 ~ 5 6 ~ 60
50A 2B 1.5 ~ 15 800 470 100 780
2.5 ~ 25 40 ~ 400
0.8 ~ 8 10 ~ 100
65A 2½B 2.5 ~ 25 4 ~ 40 60 ~ 600 800 490 150 880
1.2 ~ 12 12 ~ 120
80A 3B 4.0 ~ 40 5 ~ 50 80 ~ 800 800 540 150 920

2.5 ~ 25 25 ~ 250
100A 4B 6.0 ~ 60 1,000 590 150 940
9 ~ 90 120 ~ 1,200
4 ~ 40 40 ~ 400
125A 5B 10 ~ 100 15 ~ 150 200 ~ 2,000 1,100 640 250 960
6 ~ 60 60 ~ 600
150A 6B 14 ~ 140 1,200 690 250 1,070
20 ~ 200 300 ~ 3,000
10 ~ 100 100 ~ 1,000
200A 8B 20 ~ 200 28 ~ 280 400 ~ 4,000 1,500 740 250 1,150
* When the size is larger than 65A, to be consulted with a maker

Material table

Material code
Part list
B C D
Body 304SS 316SS 316L SS
Flange 304SS 316SS 316L SS
Float 304SS 316SS 316L SS
Support 304SS 316SS 316L SS
Magnet rod 304SS + Alnico 316SS + Alnico 316L SS + Alnico
Stopper 304SS 316SS 316L SS
Taper tube 304SS 316SS 316L SS
Guide 304SS 316SS 316L SS
Cap 304SS
Indicator Aluminium
Packing NBR, Viton, Teflon
