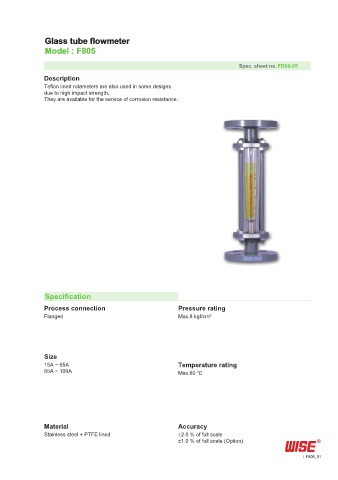

Glass tube flowmeter
Model : F805
Spec. sheet no. FD08-05
Description
Teflon lined rotameters are also used in some designs
due to high impact strength.
They are available for the service of corrosion resistance.
Specification
Process connection Pressure rating
Flanged Max.8 kgf/cm²
Size
15A ~ 65A Temperature rating
65A ~ 100A Max.80 ℃
Material Accuracy
Stainless steel + PTFE lined ±2.0 % of full scale
±1.0 % of full scale (Option)
F805_01
