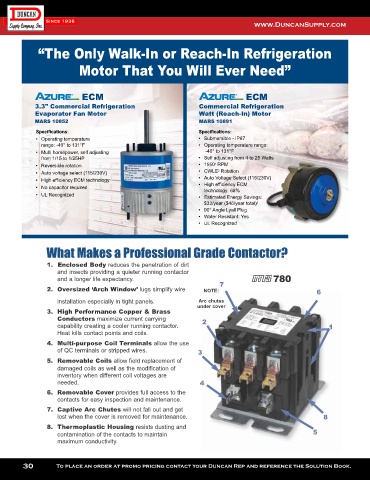

“The Only Walk-In or Reach-In Refrigeration

Motor That You Will Ever Need”

ECM ECM
3.3" Commercial Refrigeration Commercial Refrigeration
Evaporator Fan Motor Watt (Reach-In) Motor
MARS 10852 MARS 10891
Specifications: Specifications:
• Operating temperature • Submersible - IP67
range: -40° to 131°F • Operating temperature range:
• Multi horsepower, self adjusting -40° to 131°F
from 1/15 to 1/25HP • Self adjusting from 4 to 25 Watts
1
• Reversible rotation • 1550 RPM
3
• Auto voltage select (115/230V) • CWLE Rotation
• High efficiency ECM technology • Auto Voltage Select (115/230V)
® • High efficiency ECM
• No capacitor required 780 technology: 68%
• UL Recognized • Estimated Energy Savings:
Professional Grade
$33/year ($46/year total)
2
• 90° Angle Lyall Plug
• Water Resistant: Yes
• UL Recognized

What Makes a Professional Grade Contactor?

1. Enclosed Body reduces the penetration of dirt
and insects providing a quieter running contactor
and a longer life expectancy. 7 780
2. Oversized ‘Arch Window’ lugs simplify wire NOTE: 6
installation especially in tight panels. Arc chutes
under cover
3. High Performance Copper & Brass
Conductors maximize current carrying 2
capability creating a cooler running contactor. 1
Heat kills contact points and coils.

4. Multi-purpose Coil Terminals allow the use
of QC terminals or stripped wires. 3

5. Removable Coils allow field replacement of
damaged coils as well as the modification of
inventory when different coil voltages are
needed. 4

6. Removable Cover provides full access to the
contacts for easy inspection and maintenance.

7. Captive Arc Chutes will not fall out and get
lost when the cover is removed for maintenance. 8
8. Thermoplastic Housing resists dusting and
contamination of the contacts to maintain 5
maximum conductivity.

30 To place an order at promo pricing contact your Duncan Rep and reference the Solution Book.
®
