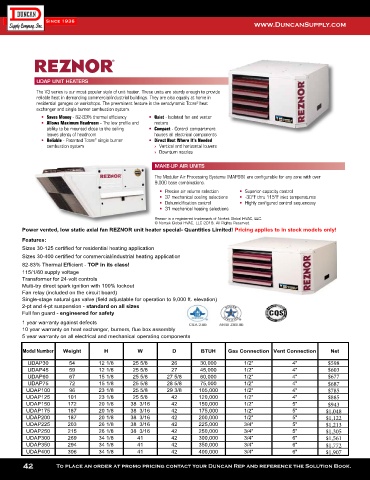

Page 42 - Duncan Supply 2019 Solution Book

www.DuncanSupply.com

UDAP UNIT HEATERS
The V3 series is our most popular style of unit heater. These units are sturdy enough to provide
reliable heat in demanding commercial/industrial buildings. They are also equally at home in
2
residential garages or workshops. The preeminent feature is the aerodynamic TCORE heat
exchanger and single burner combustion system.
• Saves Money - 82-83% thermal efficiency • Quiet - Isolated fan and venter
• Allows Maximum Headroom - The low profile and motors
ability to be mounted close to the ceiling • Compact - Control compartment
leaves plenty of headroom houses all electrical components
2
• Reliable - Patented TCORE single burner • Direct Heat Where It’s Needed
combustion system » Vertical and horizontal louvers
» Downturn nozzles

MAKE-UP AIR UNITS
The Modular Air Processing Systems (MAPS®) are configurable for any zone with over
9,000 base combinations.
• Precise air volume selection • Superior capacity control
• 37 mechanical cooling selections • -30°F thru 115°F inlet temperatures
• Dehumidification control • Highly configured control sequencesy
• 31 mechanical heating selections

Reznor is a registered trademark of Nortek Global HVAC, LLC.
© Nortek Global HVAC, LLC 2018. All Rights Reserved.
Power vented, low static axial fan REZNOR unit heater special- Quantities Limited! Pricing applies to in stock models only!
Features:
Sizes 30-125 certified for residential heating application 01/12/2018 11:04:36 AM
Reznor Ducan Ad 2018.indd 1
Sizes 30-400 certified for commercial/industrial heating application
82-83% Thermal Efficient - TOP in its class!
115/1/60 supply voltage
Transformer for 24-volt controls
Multi-try direct spark ignition with 100% lockout
Fan relay (included on the circuit board)
Single-stage natural gas valve (field adjustable for operation to 9,000 ft. elevation)
2-pt and 4-pt suspension - standard on all sizes
Full fan guard - engineered for safety
1 year warranty against defects
10 year warranty on heat exchanger, burners, flue box assembly
5 year warranty on all electrical and mechanical operating components

Model Number Weight H W D BTUH Gas Connection Vent Connection Net
UDAP30 54 12 1/8 25 5/8 26 30,000 1/2" 4" $598
UDAP45 59 12 1/8 25 5/8 27 45,000 1/2" 4" $603
UDAP60 67 15 1/8 25 5/8 27 5/8 60,000 1/2" 4" $677
UDAP75 72 15 1/8 25 5/8 28 5/8 75,000 1/2" 4" $687
UDAP100 96 23 1/8 25 5/8 29 3/8 105,000 1/2" 4" $785
UDAP125 101 23 1/8 25 5/8 42 120,000 1/2" 4" $885
UDAP150 172 20 1/8 38 3/16 42 150,000 1/2" 5" $943
UDAP175 187 20 1/8 38 3/16 42 175,000 1/2" 5" $1,048
UDAP200 187 20 1/8 38 3/16 42 200,000 1/2" 5" $1,122
UDAP225 203 26 1/8 38 3/16 42 225,000 3/4" 5" $1,213
UDAP250 215 26 1/8 38 3/16 42 250,000 3/4" 5" $1,305
UDAP300 269 34 1/8 41 42 300,000 3/4" 6" $1,561
UDAP350 294 34 1/8 41 42 350,000 3/4" 6" $1,772
UDAP400 306 34 1/8 41 42 400,000 3/4" 6" $1,907

42 To place an order at promo pricing contact your Duncan Rep and reference the Solution Book.
