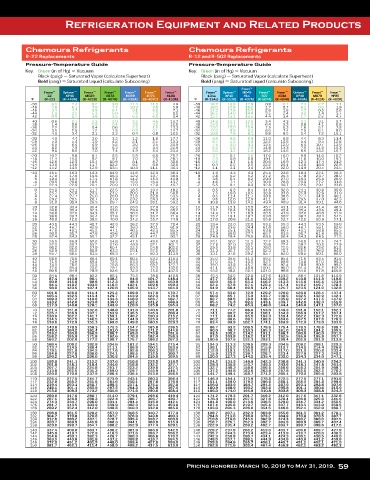

Page 59 - Duncan Supply 2019 Solution Book

refrigeration equipment and related products

Chemours Refrigerants Chemours Refrigerants
R-22 Replacements R-12 and R-502 Replacements
Pressure-Temperature Guide Pressure-Temperature Guide
Key: Green (in of Hg) = Vacuum Key: Green (in of Hg) = Vacuum
Black (psig) = Saturated Vapor (calculate Superheat) Black (psig) = Saturated Vapor (calculate Superheat)
Bold (psig) = Saturated Liquid (calculate Subcooling) Bold (psig) = Saturated Liquid (calculate Subcooling)
Freon™
Freon™ Opteon™ Freon™ Freon™ Freon™ Freon™ Freon™ Freon™ Opteon™ MO49 Freon™ Freon™ Opteon™ Freon™ Freon™
22 XP40 MO29 407A MO99 407C 410A 134a XP10 Plus 507 404A XP40 MO79 HP80
⁰F (R-22) (R-449A) (R-422D) (R-407A) (R-438A) (R-407C) (R-410A) ⁰F (R-134a) (R-513A) (R-437A) (R-507A) (R-404A) (R-449A) (R-422A) (R-402A)
-50 6.1 7.4 9.2 9.0 11.4 11.0 4.9 -50 18.7 16.6 17.0 0.9 0.1 7.4 2.2 1.1
-48 4.8 6.1 7.9 7.7 10.3 9.8 5.9 -48 18.0 15.8 16.2 1.7 0.7 6.1 0.6 1.9
-46 3.4 4.7 6.6 6.4 9.1 8.6 7.1 -46 17.3 14.9 15.3 2.6 1.6 4.7 0.5 2.8
-44 1.9 3.2 5.3 5.0 7.8 7.3 8.2 -44 16.5 14.0 14.4 3.5 2.4 3.2 1.4 3.7
-42 0.4 1.7 3.8 3.5 6.5 6.0 9.4 -42 15.7 13.1 13.5 4.4 3.4 1.7 2.2 4.7
-40 0.6 0.1 2.3 2.0 5.2 4.6 10.7 -40 14.8 12.1 12.5 5.4 4.3 0.1 3.1 5.7
-38 1.4 0.8 0.8 0.4 3.8 3.2 12.0 -38 13.9 11.1 11.5 6.4 5.3 0.8 4.1 6.8
-36 2.2 1.6 0.4 0.6 2.3 1.6 13.3 -36 13.0 10.0 10.4 7.5 6.3 1.6 5.1 7.8
-34 3.1 2.5 1.2 1.5 0.8 0.1 14.7 -34 12.0 8.9 9.3 8.6 7.4 2.5 6.1 9.0
-32 4.0 3.4 2.1 2.3 0.4 0.8 16.2 -32 10.9 7.8 8.1 9.8 8.5 3.4 7.2 10.1
-30 4.9 4.4 3.0 3.3 1.2 1.6 17.7 -30 9.8 6.6 6.9 11.0 9.6 4.4 8.3 11.4
-28 5.9 5.4 3.9 4.2 2.1 2.5 19.3 -28 8.7 5.3 5.6 12.2 10.8 5.4 9.5 12.6
-26 6.9 6.4 4.9 5.2 3.0 3.5 20.9 -26 7.5 4.0 4.3 13.5 12.0 6.4 10.7 13.9
-24 8.0 7.5 5.9 6.3 3.9 4.4 22.6 -24 6.3 2.6 2.9 14.8 13.3 7.5 11.9 15.3
-22 9.1 8.6 7.0 7.4 4.9 5.4 24.4 -22 5.0 1.2 1.4 16.2 14.6 8.6 13.2 16.7
-20 10.2 9.8 8.1 8.5 5.9 6.5 26.2 -20 3.7 0.1 0.0 17.6 16.0 9.8 14.6 18.2
-18 11.4 11.0 9.2 9.7 7.0 7.6 28.1 -18 2.3 0.9 0.8 19.1 17.4 11.0 16.0 19.7
-16 12.6 12.3 10.4 10.9 8.1 8.7 30.0 -16 0.8 1.7 1.6 20.6 18.9 12.3 17.4 21.2
-14 13.9 13.6 11.7 12.2 9.2 9.9 32.0 -14 0.4 2.5 2.5 22.2 20.4 13.6 18.9 22.9
-12 15.2 14.9 12.9 13.5 10.4 11.1 34.1 -12 1.1 3.4 3.4 23.8 22.0 14.9 20.5 24.5
-10 16.5 16.3 14.3 14.9 11.6 12.3 36.3 -10 1.9 4.3 4.3 25.5 23.6 16.3 22.1 26.3
-8 17.9 17.8 15.6 16.3 12.9 13.7 38.5 -8 2.8 5.2 5.2 27.2 25.3 17.8 23.7 28.0
-6 19.4 19.3 17.1 17.8 14.2 15.0 40.8 -6 3.6 6.1 6.2 29.0 27.0 19.3 25.4 29.9
-4 20.9 20.8 18.5 19.3 15.6 16.4 43.2 -4 4.6 7.1 7.2 30.9 28.8 20.8 27.2 31.8
-2 22.4 22.5 20.1 20.9 17.0 17.9 45.7 -2 5.5 8.1 8.3 32.8 30.7 22.5 29.1 33.8
0 24.0 24.1 21.7 22.5 18.5 19.4 48.2 0 6.5 9.2 9.4 34.8 32.6 24.1 30.9 35.8
2 25.7 25.9 23.3 24.2 20.0 21.0 50.8 2 7.5 10.3 10.5 36.8 34.6 25.9 32.9 37.9
4 27.4 27.7 25.0 26.0 21.6 22.6 53.5 4 8.5 11.4 11.7 38.9 36.6 27.7 34.9 40.1
6 29.2 29.5 26.7 27.8 23.2 24.3 56.3 6 9.6 12.6 12.9 41.1 38.7 29.5 37.0 42.3
8 31.0 31.4 28.5 29.7 24.9 26.1 59.2 8 10.8 13.8 14.2 43.4 40.9 31.4 39.1 44.6
10 32.8 33.4 30.4 31.6 26.6 27.9 62.2 10 11.9 15.1 15.5 45.7 43.1 33.4 41.4 46.9
12 34.8 35.4 32.3 33.6 28.4 29.8 65.2 12 13.1 16.4 16.8 48.0 45.4 35.4 43.6 49.4
14 36.8 37.6 34.3 35.7 30.3 31.7 68.4 14 14.4 17.7 18.3 50.5 47.8 37.6 46.0 51.9
16 38.8 39.7 36.4 37.8 32.2 33.7 71.6 16 15.7 19.1 19.7 53.0 50.2 39.7 48.4 54.5
18 40.9 42.0 38.5 40.0 34.2 35.7 74.9 18 17.0 20.6 21.2 55.6 52.7 42.0 50.9 57.1
20 43.1 44.3 40.7 42.3 36.2 37.9 78.4 20 18.4 22.0 22.8 58.2 55.3 44.3 53.5 59.8
22 45.3 46.7 42.9 44.7 38.3 40.1 81.9 22 19.9 23.6 24.4 61.0 58.0 46.7 56.1 62.6
24 47.6 49.1 45.2 47.1 40.5 42.3 85.5 24 21.3 25.1 26.0 63.8 60.7 49.1 58.8 65.5
26 50.0 51.7 47.6 49.6 42.8 44.7 89.2 26 22.9 26.8 27.7 66.7 63.5 51.7 61.6 68.5
28 52.4 54.3 50.1 52.2 45.1 47.1 93.1 28 24.5 28.4 29.5 69.6 66.4 54.3 64.5 71.5
30 55.0 56.9 52.6 54.8 47.5 49.6 97.0 30 26.1 30.2 31.3 72.7 69.3 56.9 67.5 74.7
32 57.5 59.7 55.2 57.6 49.9 52.1 101.1 32 27.8 32.0 33.2 75.8 72.4 59.7 70.5 77.9
34 60.2 62.6 57.9 60.4 52.5 54.8 105.2 34 29.5 33.8 35.1 79.0 75.5 62.6 73.6 81.2
36 62.9 65.5 60.6 63.3 55.1 57.5 109.5 36 31.3 35.7 37.1 82.3 78.7 65.5 76.8 84.6
38 65.7 68.5 63.5 66.3 57.7 60.3 113.9 38 33.1 37.6 39.2 85.7 82.0 68.5 80.1 88.0
40 68.6 71.6 66.4 69.4 60.5 63.2 118.4 40 35.0 39.6 41.3 89.2 85.4 71.6 83.5 91.6
42 71.5 74.8 69.4 72.5 63.3 66.1 123.0 42 37.0 41.7 43.5 92.7 88.8 74.8 87.0 95.3
44 74.5 78.0 72.5 75.8 66.3 69.2 127.7 44 39.0 43.8 45.7 96.4 92.4 78.0 90.5 99.0
46 77.6 81.4 75.6 79.1 69.3 72.3 132.6 46 41.1 46.0 48.0 100.1 96.0 81.4 94.2 102.9
48 80.8 84.8 78.9 82.6 72.3 75.5 137.5 48 43.2 48.2 50.4 104.0 99.8 84.8 97.9 106.8
50 84.1 88.4 82.2 86.1 75.5 78.8 142.6 50 45.4 50.5 52.8 107.9 103.6 88.4 101.8 110.9
52 87.4 110.8 96.1 108.2 94.6 101.7 148.4 52 47.7 52.9 61.6 112.0 109.2 110.8 111.3 119.6
54 90.8 115.0 99.8 112.3 98.3 105.6 153.8 54 50.0 55.3 64.3 116.2 113.3 115.0 115.4 123.9
56 94.4 119.2 103.6 116.5 102.1 109.6 159.3 56 52.4 57.8 67.1 120.4 117.4 119.2 119.7 128.3
58 98.0 123.5 107.4 120.8 105.9 113.7 164.9 58 54.9 60.4 69.9 124.7 121.7 123.5 124.0 132.8
60 101.6 128.0 111.4 125.2 109.8 117.9 170.7 60 57.4 63.0 72.9 129.2 126.0 128.0 128.4 137.4
62 105.4 132.5 115.4 129.7 113.9 122.3 176.6 62 60.0 65.7 75.9 133.7 130.5 132.5 132.9 142.1
64 109.3 137.2 119.6 134.3 118.0 126.7 182.7 64 62.7 68.5 78.9 138.4 135.0 137.2 137.5 147.0
66 113.2 142.0 123.8 139.0 122.2 131.2 188.9 66 65.4 71.3 82.1 143.1 139.7 142.0 142.3 151.9
68 117.3 146.8 128.1 143.9 126.6 135.8 195.3 68 68.2 74.2 85.3 148.0 144.4 146.8 147.1 157.0
70 121.4 151.8 132.6 148.8 131.0 140.5 201.8 70 71.1 77.2 88.6 153.0 149.3 151.8 152.1 162.1
72 125.7 156.9 137.1 153.9 135.5 145.4 208.4 72 74.1 80.2 92.0 158.1 154.3 156.9 157.2 167.4
74 130.0 162.2 141.7 159.1 140.2 150.3 215.2 74 77.1 83.4 95.5 163.3 159.4 162.2 162.3 172.8
76 134.5 167.5 146.5 164.4 144.9 155.4 222.2 76 80.2 86.6 99.1 168.6 164.6 167.5 167.6 178.3
78 139.0 172.9 151.3 169.8 149.8 160.5 229.3 78 83.4 89.9 102.7 174.1 169.9 172.9 173.0 183.9
80 143.6 178.5 156.3 175.3 154.7 165.8 236.5 80 86.7 93.2 106.5 179.6 175.4 178.5 178.6 189.7
82 148.4 184.2 161.4 181.0 159.8 171.2 244.0 82 90.0 96.7 110.3 185.3 181.0 184.2 184.2 195.5
84 153.2 190.0 166.5 186.7 165.0 176.8 251.6 84 93.5 100.2 114.2 191.1 186.7 190.0 190.0 201.5
86 158.2 195.9 171.8 192.6 170.3 182.4 259.3 86 97.0 103.8 118.2 197.1 192.5 195.9 195.9 207.7
88 163.2 202.0 177.2 198.7 175.7 188.2 267.3 88 100.6 107.5 122.3 203.1 198.4 202.0 201.9 213.9
90 168.4 208.2 182.8 204.8 181.2 194.1 275.4 90 104.3 111.3 126.5 209.3 204.5 208.2 208.1 220.3
92 173.7 214.5 188.4 211.1 186.8 200.1 283.6 92 108.1 115.2 130.8 215.6 210.7 214.5 214.4 226.8
94 179.1 221.0 194.2 217.6 192.6 206.3 292.1 94 112.0 119.1 135.2 222.1 217.0 221.0 220.8 233.4
96 184.6 227.6 200.0 224.1 198.5 212.5 300.7 96 115.9 123.2 139.7 228.7 223.4 227.6 227.3 240.2
98 190.2 234.3 206.0 230.8 204.5 219.0 309.5 98 120.0 127.3 144.2 235.4 230.0 234.3 234.0 247.1
100 195.9 241.1 212.2 237.6 210.6 225.5 318.5 100 124.2 131.5 148.9 242.3 236.8 241.1 240.9 254.2
102 201.8 248.1 218.4 244.6 216.8 232.2 327.7 102 128.4 135.9 153.7 249.3 243.6 248.1 247.8 261.4
104 207.7 255.3 224.8 251.7 223.2 239.0 337.1 104 132.7 140.3 158.6 256.5 250.6 255.3 254.9 268.7
106 213.8 262.5 231.3 259.0 229.7 245.9 346.7 106 137.2 144.8 163.6 263.8 257.8 262.5 262.2 276.2
108 220.0 270.0 237.9 266.4 236.4 253.0 356.5 108 141.7 149.4 168.7 271.2 265.1 270.0 269.6 283.8
110 226.4 277.5 244.7 273.9 243.1 260.3 366.4 110 146.4 154.1 173.9 278.8 272.5 277.5 277.1 291.6
112 232.8 285.2 251.6 281.6 250.1 267.6 376.6 112 151.1 159.0 179.2 286.6 280.1 285.2 284.8 299.6
114 239.4 293.1 258.7 289.5 257.1 275.1 387.0 114 156.0 163.9 184.7 294.5 287.9 293.1 292.6 307.6
116 246.1 301.1 265.9 297.5 264.3 282.8 397.6 116 160.9 168.9 190.2 302.6 295.8 301.1 300.6 315.9
118 253.0 309.3 273.2 305.6 271.6 290.6 408.4 118 166.0 174.0 195.9 310.8 303.8 309.3 308.8 324.3
120 260.0 317.6 280.7 314.0 279.1 298.6 419.4 120 171.2 179.3 201.7 319.2 312.0 317.6 317.1 332.8
122 267.1 326.0 288.3 322.4 286.7 306.7 430.7 122 176.4 184.6 207.5 327.8 320.4 326.0 325.6 341.6
124 274.3 334.7 296.0 331.1 294.4 315.0 442.1 124 181.8 190.0 213.6 336.5 329.0 334.7 334.2 350.5
126 281.7 343.5 303.9 339.9 302.3 323.4 453.8 126 187.4 195.6 219.7 345.4 337.7 343.5 343.0 359.5
128 289.2 352.4 312.0 348.8 310.3 332.0 465.8 128 193.0 201.3 226.0 354.5 346.6 352.4 352.0 368.7
130 296.9 361.5 320.2 357.9 318.5 340.7 477.9 130 198.7 207.1 232.3 363.8 355.6 361.5 361.2 378.1
132 304.7 370.8 328.6 367.2 326.9 349.6 490.3 132 204.6 213.0 238.9 373.2 364.9 370.8 370.5 387.7
134 312.6 380.2 337.1 376.7 335.4 358.7 503.0 134 210.6 219.0 245.5 382.9 374.3 380.2 380.0 397.5
136 320.7 389.9 345.8 386.3 344.1 368.0 515.9 136 216.7 225.1 252.3 392.7 383.9 389.9 389.7 407.4
138 329.0 399.7 354.7 396.2 352.9 377.4 529.1 138 222.9 231.4 259.2 402.7 393.7 399.7 399.6 417.5
140 337.4 409.6 363.7 406.2 361.9 386.9 542.5 140 229.2 237.8 266.2 413.0 403.7 409.6 409.7 427.8
142 345.9 419.7 372.9 416.3 371.0 396.7 556.2 142 235.7 244.3 273.4 423.4 413.9 419.7 420.0 438.3
144 354.6 430.1 382.3 426.7 380.3 406.6 570.2 144 242.3 250.9 280.7 434.1 424.3 430.1 430.5 449.0
146 363.5 440.6 391.8 437.2 389.8 416.7 584.5 146 249.0 257.7 288.1 444.9 434.9 440.6 441.2 459.9
148 372.5 451.2 401.5 448.0 399.4 427.0 599.0 148 255.9 264.6 295.7 456.1 445.7 451.2 452.1 471.0
150 381.7 462.1 411.4 458.9 409.2 437.5 613.9 150 262.9 271.6 303.4 467.4 456.8 462.1 463.2 482.3
Approximate Pressure Control Settings—Refrigeration Properties calculated using REFPROP Ver 9.1, Std Ref Data Program, NIST 2013.
Modifications were made to REFPROP when interaction parameters were not available.
Temp Opteon™ Freon™ Freon™
To place an order at promo pricing contact your Duncan Rep and reference the Solution Book. Application Range Evap Freon™ 22 Out XP40 In Out 407A In Out 404A In Pricing honored March 10, 2019 to May 31, 2019. 59
°F
In
Out
Δ T °F
Beverage Cooler
Floral Cooler 35 to 15 41 66 47 75 45 73 53 83
38
Produce Cooler
Smoked Meat Cooler
Meat Reach Through 32 to 15 38 62 43 70 42 68 49 78
Service Deli 35
Seafood
Multi-Deck Fresh Meat 26 to 15 32 54 37 64 35 59 42 68
29
Frozen Glass Door -10 to 10 9 24 11 28 10 26 15 33 For a complete list of P-T charts, please refer to the PT
Frozen Glass Walk-In 0 Calc app available for download for Android™ and
Apple™ devices.
Frozen Ice Cream -30 to 10 0 10 1 13 0 11 4 16 refrigerants.chemours.com
Frozen Food - Open Type -20
