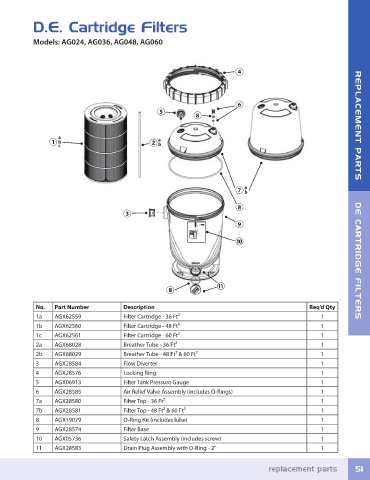

D.E. Cartridge Filters
Models: AG024, AG036, AG048, AG060
4
6
5
8
a REPLACEMENT PARTS
1 b 2 a
c b
7 a b
8
3
9
10 DE CARTRIDGE FILTERS
11
8
No. Part Number Description Req’d Qty
1a AGX62559 Filter Cartridge - 36 Ft² 1
1b AGX62560 Filter Cartridge - 48 Ft² 1
1c AGX62561 Filter Cartridge - 60 Ft² 1
2a AGX68028 Breather Tube - 36 Ft² 1
2b AGX68029 Breather Tube - 48 Ft² & 60 Ft² 1
3 AGX28584 Flow Diverter 1
4 AGX28576 Locking Ring 1
5 AGX06913 Filter Tank Pressure Gauge 1
6 AGX28585 Air Relief Valve Assembly (includes O-Rings) 1
7a AGX28580 Filter Top - 36 Ft² 1
7b AGX28581 Filter Top - 48 Ft² & 60 Ft² 1
8 AGX19079 O-Ring Kit (includes lube) 1
9 AGX28574 Filter Base 1
10 AGX05736 Safety Latch Assembly (includes screw) 1
11 AGX28583 Drain Plug Assembly with O-Ring - 2" 1
replacement parts 51
