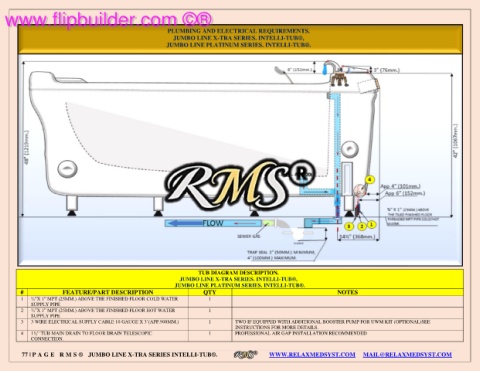

PLUMBING AND ELECTRICAL REQUIREMENTS.
JUMBO LINE X-TRA SERIES. INTELLI-TUB®,
JUMBO LINE PLATINUM SERIES. INTELLI-TUB®.

TUB DIAGRAM DESCRIPTION.
JUMBO LINE X-TRA SERIES. INTELLI-TUB®,
JUMBO LINE PLATINUM SERIES. INTELLI-TUB®.
# FEATURE/PART DESCRIPTION QTY NOTES
1 ¾”X 1” MPT (25MM.) ABOVE THE FINISHED FLOOR COLD WATER 1
SUPPLY PIPE
2 ¾”X 1” MPT (25MM.) ABOVE THE FINISHED FLOOR HOT WATER 1
SUPPLY PIPE
3 3 WIRE ELECTRICAL SUPPLY CABLE 10 GAUGE X 3’(APP.900MM.) 1 TWO IF EQUIPPED WITH ADDITIONAL BOOSTER PUMP FOR UWM KIT (OPTIONAL)SEE
INSTRUCTIONS FOR MORE DETAILS.
4 1½” TUB MAIN DRAIN TO FLOOR DRAIN TELESCOPIC 1 PROFESSIONAL AIR GAP INSTALLATION RECOMMENDED
CONNECTION.

77 | P A G E R M S ® JUMBO LINE X-TRA SERIES INTELLI-TUB®. WWW.RELAXMEDSYST.COM MAIL@RELAXMEDSYST.COM
