PLUMBING AND ELECTRICAL REQUIREMENTS. TR-320MB-JL

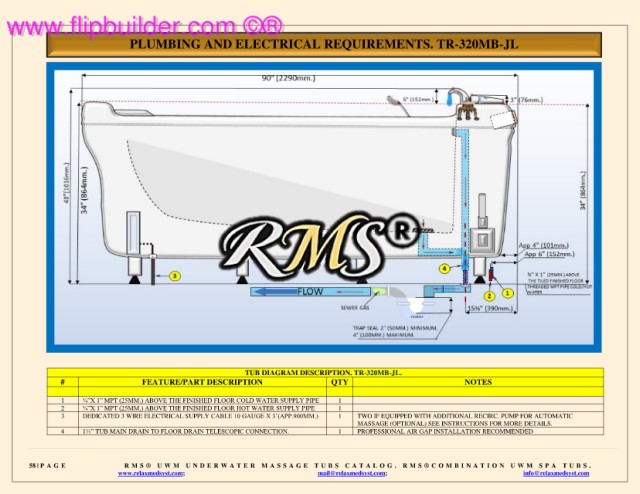

TUB DIAGRAM DESCRIPTION. TR-320MB-JL.
# FEATURE/PART DESCRIPTION QTY NOTES
1 ¾”X 1” MPT (25MM.) ABOVE THE FINISHED FLOOR COLD WATER SUPPLY PIPE 1
2 ¾”X 1” MPT (25MM.) ABOVE THE FINISHED FLOOR HOT WATER SUPPLY PIPE 1
3 DEDICATED 3 WIRE ELECTRICAL SUPPLY CABLE 10 GAUGE X 3’(APP.900MM.) 1 TWO IF EQUIPPED WITH ADDITIONAL RECIRC. PUMP FOR AUTOMATIC
MASSAGE (OPTIONAL) SEE INSTRUCTIONS FOR MORE DETAILS.
4 1½” TUB MAIN DRAIN TO FLOOR DRAIN TELESCOPIC CONNECTION. 1 PROFESSIONAL AIR GAP INSTALLATION RECOMMENDED
