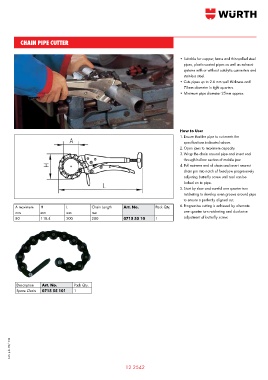

Page 1012 - Wurth Total Catalogue

CHAIN PIPE CUTTER

• Suitable for copper, brass and thin-walled steel
pipes, plastic-coated pipes as well as exhaust
systems with or without catalytic converters and
stainless steel.
• Cuts pipes up to 2.6 mm wall thickness and
75mm diameter in tight quarters.
• Minimum pipe diameter 25mm approx.

How to Use:
1. Ensure that the pipe to cut meets the
specifications indicated above.
2. Open jaws to maximum capacity.
3. Wrap the chain around pipe and insert end
through hollow section of mobile jaw.
4. Pull extreme end of chain and insert nearest
chain pin into notch of fixed jaw progressively
adjusting butterfly screw until tool can be
locked on to pipe.
5. Start by slow and careful one quarter turn
ratcheting to develop even groove around pipe
to ensure a perfectly aligned cut.
A maximum H L Chain Length Art. No. Pack Qty. 6. Progressive cutting is achieved by alternate
mm mm mm mm one quarter turn ratcheting and clockwise
80 118.4 300 280 0715 55 10 1 adjustment of butterfly screw.

Description Art. No. Pack Qty.
Spare Chain 0715 55 101 1
