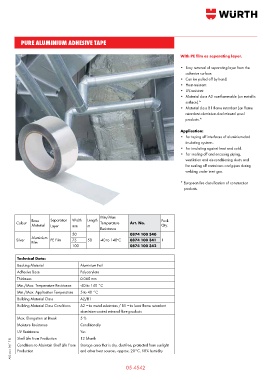

Page 363 - Wurth Total Catalogue

PURE ALUMINIUM ADHESIVE TAPE

With PE film as separating layer.

• Easy removal of separating layer from the
adhesive surface.
• Can be pulled off by hand.
• Heat-resistant.
• UV-resistant.
• Material class A2 non-flammable (on metallic
surface).*
• Material class B1 flame retardant (on flame
retardant aluminium-clad mineral wool
products.*

Application:
• For taping off interfaces of aluminium-clad
insulating systems.
• For insulating against heat and cold.
• For sealing off and encasing piping,
ventilation and air-conditioning ducts and
for sealing off containers and pipes during
welding under inert gas.

* European fire classification of construction
products.

Min/Max
Base Separation Width Length Pack
Colour Temperature Art. No.
Material Layer mm m Qty.
Resistance
50 0874 100 340
Aluminium
Silver PE Film 75 50 -40 to 140 C 0874 100 341 1
o
Film
100 0874 100 342
Technical Data:
Backing Material Aluminium Foil
Adhesive Base Polyacrylate
Thickness 0.065 mm
Min./Max. Temperature Resistance -40 to 140 °C
Min./Max. Application Temperature 5 to 40 °C
Building Material Class A2/B1
Building Material Class Conditions A2 = to metal substrates / B1 = to least flame retardant
aluminium-coated mineral fibre products
Max. Elongation at Break 5 %
Moisture Resistance Conditionally
UV Resistance Yes
Shelf Life From Production 12 Month
AUS. pub. 06/17 © Conditions to Maintain Shelf Life From Storage area that is dry, dust-free, protected from sunlight
Production
and other heat sources, approx. 20°C, 50% humidity

05 4542
