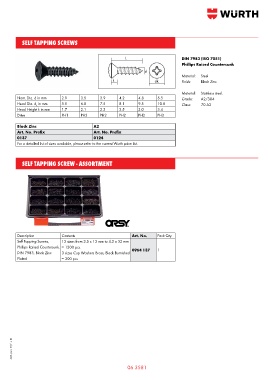

P. 511
self tapping screws
L DIN 7983 (ISO 7051)
Phillips Raised Countersunk
d
Material: Steel
k dk Finish: Black Zinc
Material: Stainless steel.
Nom. Dia. d in mm 2.9 3.5 3.9 4.2 4.8 5.5 Grade: A2/304
Head Dia. d in mm 5.5 6.8 7.5 8.1 9.5 10.8 Class: 70 A2
k
Head Height k in mm 1.7 2.1 2.3 2.5 3.0 3.4
Drive PH1 PH2 PH2 PH2 PH2 PH3
Black Zinc A2
Art. No. Prefix Art. No. Prefix
0137 0124
For a detailed list of sizes available, please refer to the current Wurth price list.
self tapping screw - assortment
Description Contents Art. No. Pack Qty.
Self Tapping Screws, 13 sizes from 3.5 x 13 mm to 4.2 x 32 mm
Phillips Raised Countersunk. = 1300 pcs.
DIN 7983, Black Zinc 3 sizes Cup Washers Brass, Black Burnished 0964 137 1
Plated = 300 pcs
AUS. pub. 01/14 ©
06 3581
