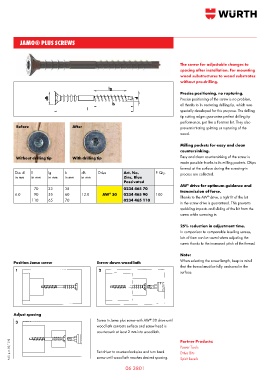

JAMO® PLUS SCREWS

The screw for adjustable changes to
spacing after installation. For mounting
wood substructures to wood substrates
without pre-drilling.

Precise positioning, no rupturing.
Precise positioning of the screw is no problem,
all thanks to its centering drilling tip, which was
specially developed for this purpose. The drilling
tip cutting edges guarantee perfect drilling tip
performance, just like a Forstner bit. They also
Before After prevent irritating splitting or rupturing of the
wood.

Milling pockets for easy and clean
countersinking.
Without drilling tip With drilling tip Easy and clean countersinking of the screw is
made possible thanks to its milling pockets. Chips
formed at the surface during the screwing-in
Dia. d l lg b dh Drive Art. No. P. Qty. process are collected.
in mm in mm in mm in mm in mm Zinc, Blue
Passivated ®
70 33 38 0234 465 70 AW drive for optimum guidance and
transmission of force.
®
6.0 90 55 60 12.0 AW 30 0234 465 90 100 Thanks to the AW drive, a tight fit of the bit
®
110 65 70 0234 465 110
in the screw drive is guaranteed. This prevents
wobbling impacts and sliding of the bit from the
screw while screwing in.
25% reduction in adjustment time.
In comparison to comparable levelling screws,
lots of time can be saved when adjusting the
screw thanks to the increased pitch of the thread.

Note:
Position Jamo screw Screw down wood lath When selecting the screw length, keep in mind
that the thread must be fully anchored in the
1 2 surface.

Adjust spacing
®
3 Screw in Jamo plus screw with AW 30 drive until
wood lath contacts surface and screw head is
countersunk at least 2 mm into wood lath.

AUS. pub. 02/15 © Set driver to counterclockwise and turn back Partner Products:
Power Tools
Drive Bits
screw until wood lath reaches desired spacing.
Spirit Levels
