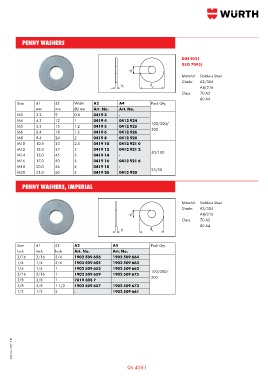

Page 559 - Wurth Total Catalogue

PENNY WASHERS

DIN 9021
(ISO 7093)
d 1
Material: Stainless Steel
Grade: A2/304
d
2 A4/316
Class: 70 A2
80 A4
Size d1 d2 Width A2 A4 Pack Qty.
mm mm (h) mm Art. No. Art. No.
M3 3.2 9 0.8 0419 3 -
M4 4.3 12 1 0419 4 0412 924
M5 5.3 15 1.2 0419 5 0412 925 100/300/
M6 6.4 18 1.6 0419 6 0412 926 500
M8 8.4 24 2 0419 8 0412 928
M10 10.5 30 2.5 0419 10 0412 921 0
M12 13.0 37 3 0419 12 0412 921 2
M14 15.0 45 3 0419 14 - 50/100
M16 17.0 50 3 0419 16 0412 921 6
M18 20.0 56 4 0419 18 -
M20 21.0 60 4 0419 20 0412 920 25/50

PENNY WASHERS, IMPERIAL

Material: Stainless Steel
Grade: A2/304
d 1 A4/316
Class: 70 A2
80 A4
d
2

Size d1 d2 A2 A4 Pack Qty.
Inch Inch Inch Art. No. Art. No.
3/16 3/16 3/4 1902 509 656 1902 509 664
1/4 1/4 3/4 1902 509 655 1902 509 663
1/4 1/4 1 1902 509 653 1902 509 662
5/16 5/16 1 1902 509 659 1902 509 675 100/300/
3/8 3/8 1 7819 303 7 500
3/8 3/8 1 1/2 1902 509 657 1902 509 673
1/2 1/2 2 - 1902 509 661

AUS. pub. 03/15 ©

06 4581
