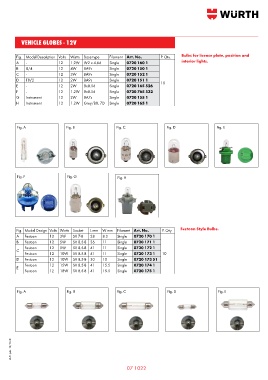

Page 638 - Wurth Total Catalogue

VEHICLE GLOBES - 12V

Fig. Model Description Volts Watts Base type Filament Art. No. P. Qty. Bulbs for license plate, position and
A - 12 1.2W W2 x 4.6d Single 0720 160 1 interior lights.
B 8/4 12 4W BA9s Single 0720 150 1
C - 12 3W BA9s Single 0720 152 1
D T8/2 12 2W BA9s Single 0720 151 1
E - 12 2W Bx8.5d Single 0720 165 526 10
F - 12 1.2W Bx8.5d Single 0720 765 532
G Instrument 12 2W BA7s Single 0720 155 1
H Instrument 12 1.2W Grey/B8, 7D Single 0720 165 1

Fig. A Fig. B Fig. C Fig. D Fig. E

Fig. F Fig. G Fig. H

Fig. Model Design Volts Watts Socket L mm W mm Filament Art. No. P. Qty. Festoon Style Bulbs.
A Festoon 12 3W SV 7-8 28 8.2 Single 0720 170 1
B Festoon 12 5W SV 8.5-8 36 11 Single 0720 171 1
Festoon 12 5W SV 8.5-8 41 11 Single 0720 172 1
C
Festoon 12 10W SV 8.5-8 41 11 Single 0720 173 1 10
D Festoon 12 10W SV 8.5-8 30 10 Single 0720 173 51
Festoon 12 15W SV 8.5-8 41 15.5 Single 0720 174 1
E
Festoon 12 18W SV 8.5-8 41 15.5 Single 0720 175 1

Fig. A Fig. B Fig. C Fig. D Fig. E
