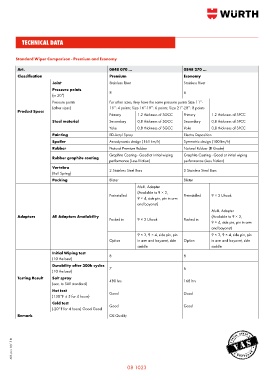

Page 735 - Wurth Total Catalogue

TECHNICAL DATA

Standard Wiper Comparison - Premium and Economy
Art. 0848 070 … 0848 270 …
Classification Premium Economy
Joint Stainless Rivet Stainless Rivet
Pressure points 8 6
(in 20”)
Pressure points For other sizes, they have the same pressure points Size 11’’-
(other sizes) 15’’: 4 points; Size 16’’-19’’: 6 points; Size 21’’-28’’: 8 points
Product Specs
Primary 1.2 thickness of SGCC Primary 1.2 thickness of SPCC
Steel material Secondary 0,8 thickness of SGCC Secondary 0,8 thickness of SPCC
Yoke 0,8 thickness of SGCC Yoke 0,8 thickness of SPCC
Painting ED-Acryl Spray Electro Deposition
Spoiler Aerodynamic design (161 km/h) Symmetric design (100 km/h)
Rubber Natural Premium Rubber Natural Rubber (B Grade)
Graphite Coating - Good at initial wiping Graphite Coating - Good at initial wiping
Rubber graphite coating
performance (Less friction) performance (Less friction)
Vertebra 2 Stainless Steel Bars 2 Stainless Steel Bars
(Rail Spring)
Packing Blister Blister
Multi. Adapter
(Available to 9 × 3,
Preinstalled Preinstalled 9 × 3 Uhook
9 × 4, side pin, pin in arm
and bayonet)
Multi. Adapter
Adaptors All Adaptors Availability (Available to 9 × 3,
Packed in 9 × 3 Uhook Packed in
9 × 4, side pin, pin in arm
and bayonet)
9 × 3, 9 × 4, side pin, pin 9 × 3, 9 × 4, side pin, pin
Option in arm and bayonet, side Option in arm and bayonet, side
saddle saddle
Initial Wiping test
(10 the best) 8 8
Durability after 300k cycles
(10 the best) 7 6
Testing Result Salt spray 480 hrs 168 hrs
(acc. to SAE standard)
Hot test Good Good
(130°F ± 5 for 4 hours)
Cold test
(-20°F for 4 hours) Good Good Good Good
Remark OE Quality

value added
