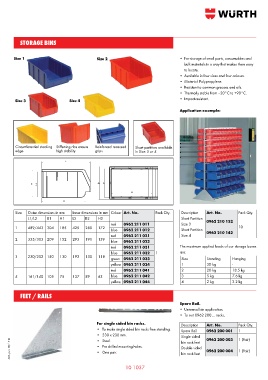

Page 823 - Wurth Total Catalogue

STORAGE BINS

Size 1 Size 2 • For storage of small parts, consumables and
bulk materials in a way that makes them easy
to locate.
• Available in four sizes and four colours.
• Material: Polypropylene.
• Resistant to common greases and oils.
• Thermally stable from –20°C to +90°C.
Size 3 Size 4 • Impact-resistant.

Application example:

Circumferential stacking Stiffening ribs ensure Reinforced recessed Short partition available
edge high stability grips in Size 3 or 4

Size Outer dimensions in mm Inner dimensions in mm Colour Art. No. Pack Qty. Description Art. No. Pack Qty.
L1/L2 B1 H1 L3 B2 H2 Short Partition 0962 210 132
red 0962 211 011 Size 3
1 489/443 304 185 425 280 172 blue 0962 211 012 Short Partition 10
red 0962 211 021 Size 4 0962 210 142
2 335/303 209 152 293 191 139
blue 0962 211 022
red 0962 211 031 The maximum applied loads of our storage boxes
blue 0962 211 032 1 are:
3 230/202 150 130 192 130 118
green 0962 211 033 Size Standing Hanging
yellow 0962 211 034 1 30 kg -
red 0962 211 041 2 20 kg 18.5 kg
4 161/140 105 75 137 89 63 blue 0962 211 042 3 5 kg 7.6 kg
yellow 0962 211 044 4 2 kg 2.2 kg

FEET / RAILS
Spare Rail.
• Universal bin application.
• To suit 0962 200 ... racks.

For single sided bin racks. Description Art. No. Pack Qty.
• To make single sided bin racks free standing. Spare Rail 0962 200 001 1
• 230 x 230 mm. Single sided 0962 200 003 1 (Pair)
AUS. pub. 08/17 © • Pre drilled mounting holes. Double sided 0962 200 004 1 (Pair)
• Steel.
bin rack feet
• One pair.
bin rack feet
