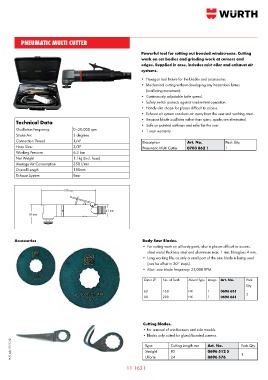

Page 865 - Wurth Total Catalogue

pneumatic multi cutter

Powerful tool for cutting out bonded windscreens. Cutting
work on car bodies and grinding work at corners and
edges. Supplied in case, includes mist oiler and exhaust air
systems.
• Hexagon tool fixture for the blades and accessories.
• Mechanical cutting without developing any hazardous fumes
(oscillating movement).
• Continuously adjustable knife speed.
• Safety switch protects against inadvertent operation.
• Handy slim shape for places difficult to access.
• Exhaust air system conducts air away from the user and working area.
Technical Data • Because blade oscillates rather than spins, sparks are eliminated.
• Safe on painted surfaces and safer for the user.
Oscillation Frequency 0–20,000 rpm • 1 year warranty.
Stroke Arc 3 degrees
Connection Thread 1/4" Description Art. No. Pack Qty.
Hose Size: 3/8" Pneumatic Multi Cutter 0703 862 1 1
Working Pressure 6.3 bar
Net Weight 1.1kg (incl. hose)
Average Air Consumption 350 l/min
Overall Length 180mm
Exhaust System Rear

190 mm

41 mm
63 mm

Accessories Body Saw Blades.
• For cutting work on all body parts, also in places difficult to access,
sheet metal thickness steel and aluminium max. 1 mm, fibreglass 4 mm.
• Long working life, as only a small part of the saw blade is being used
(can be offset in 30° steps).
• Max. saw blade frequency: 22,000 RPM.

Outer Ø No. of Teeth Mount Type Image Art. No. Pack
Qty.
63 160 HX 1 0696 631
80 200 HX 1 0696 681 2

Cutting Blades.
• For removal of windscreens and side moulds.
• Blades only suited for glued/bonded screens.
AUS. pub. 01/13 © Type Cutting Length mm Art. No. Pack Qty.
0696 512 5
85
Straight
1
0696 576
24
U-form
11 1631
