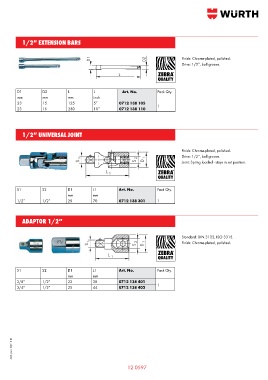

Page 923 - Wurth Total Catalogue

1/2” EXTENSION BARS

Finish: Chrome-plated, polished.
Drive: 1/2”, ball groove.

D1 D2 L L Art. No. Pack Qty.
mm mm mm inch
23 15 125 5” 0712 138 105
23 15 250 10” 0712 138 110 1

1/2” UNIVERSAL JOINT

Finish: Chrome-plated, polished.
Drive: 1/2”, ball groove.
Joint: Spring loaded - stays in set position.

S1 S2 D1 L1 Art. No. Pack Qty.
mm mm
1/2” 1/2” 25 70 0712 138 301 1

ADAPTOR 1/2”

Standard: DIN 3122, ISO 3315.
Finish: Chrome-plated, polished.

S1 S2 D1 L1 Art. No. Pack Qty.
mm mm
3/8" 1/2” 23 38 0712 138 401
3/4" 1/2” 25 44 0712 138 402 1

AUS. pub. 04/15 ©

12 0597
