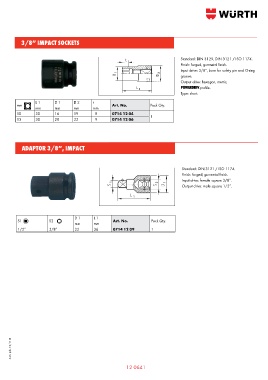

Page 933 - Wurth Total Catalogue

3/8” impact sockets

Standard: DIN 3129, DIN 3121 / ISO 1174.
Finish: forged, gunmetal finish.
Input drive: 3/8”, bore for safety pin and O-ring
groove.
Output drive: hexagon, metric,
profile.
Type: short.

L 1 D 1 D 2 t
mm Art. No. Pack Qty.
mm mm mm mm
10 30 16 19 8 0714 12 04 1
13 30 20 22 9 0714 12 06

adaptor 3/8”, impact

Standard: DIN 3121 / ISO 1174.
Finish: forged, gunmetal finish.
Input drive: female square 3/8”.
Output drive: male square 1/2”.

D 1 L 1
S1 S2 Art. No. Pack Qty.
mm mm
1/2” 3/8” 22 36 0714 12 09 1

AUS. pub. 12/11 ©

12 0641
