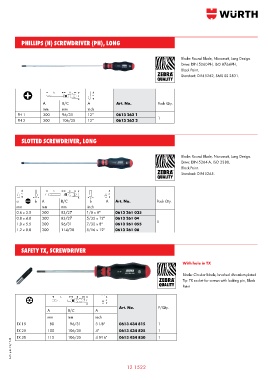

Page 957 - Wurth Total Catalogue

PHILLIPS (H) SCREWDRIVER (PH), LONG

Blade: Round Blade, Nicromatt, Long Design.
Drive: DIN 5260-PH, ISO 8764-PH,
Black Point.
Standard: DIN 5262, SMS SS 2831.

A B/C A Art. No. Pack Qty.
mm mm inch
PH 1 300 96/31 12” 0613 262 1
PH 2 300 106/35 12” 0613 262 2 1

SLOTTED SCREWDRIVER, LONG

Blade: Round Blade, Nicromatt, Long Design.
Drive: DIN 5264-A, ISO 2380,
Black Point.
Standard: DIN 5265.

a b A B/C b A Art. No. Pack Qty.
mm mm mm inch
0.6 x 3.5 200 83/27 1/8 x 8" 0613 261 035
0.8 x 4.0 300 83/27 5/32 x 12" 0613 261 04
1.0 x 5.5 200 96/31 7/32 x 8" 0613 261 055 1
1.2 x 8.0 300 114/38 5/16 x 12" 0613 261 08

SAFETY TX, SCREWDRIVER

With hole in TX

Blade: Circular blade, brushed chromium-plated
Tip: TX socket for screws with locking pin, Black
Point

Art. No. P/Qty.
A B/C A
mm mm inch
TX 15 80 96/31 3 1⁄8" 0613 434 815 1
TX 25 100 106/35 4" 0613 434 825 1
TX 30 115 106/35 4 9⁄16" 0613 434 830 1
AUS. pub. 12/16 ©

12 1522
