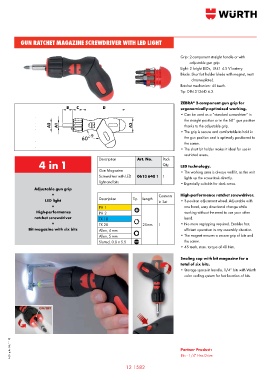

Page 963 - Wurth Total Catalogue

gun ratchet magazine screwdriver with led light

Grip: 2-component straight handle or with
adjustable gun grip.
Light: 2 bright LEDs, LR41 4.5 V battery.
Blade: Short bit holder blade with magnet, matt
chrome-plated.
Ratchet mechanism: 45 teeth.
Tip: DIN 3126-D 6.3.

ZEBRA 2-component gun grip for
®
ergonomically-optimized working.
• Can be used as a “standard screwdriver” in
the straight position or in the 60° gun position
thanks to the adjustable grip.
• The grip is secure and comfortable to hold in
the gun position and is optimally positioned to
the screw.
• The short bit holder makes it ideal for use in
restricted areas.
Description
Pack
Art. No.
4 in 1 Qty. LED technology.
Gun Magazine • The working area is always well lit, as the unit
Screwdriver with LED 0613 640 1 1 lights up the screw task directly.
light and bits • Especially suitable for dark areas.
Adjustable gun grip
+ Contents High-performance ratchet screwdriver.
LED light Description Tip Length in Set • 3-position adjustment wheel. Adjustable with
+ PH 1 one hand, easy directional change while
High-performance PH 2 working without the need to use your other
ratchet screwdriver TX 10 hand.
+ TX 20 25mm 1 • No more regripping required. Enables fast,
Bit magazine with six bits Allen, 4 mm efficient operation in any assembly situation.
Allen, 5 mm • The magnet ensures a secure grip of bits and
Slotted, 0.8 x 5.5 the screw.
• 45 teeth, max. torque of 40 Nm.

Sealing cap with bit magazine for a
total of six bits.
• Storage space in handle, 1/4“ bits with Wurth
color coding system for fast location of bits.

AUS. pub. 06/11 © Partner Product:

Bits - 1/4" Hex Drive

12 1582
