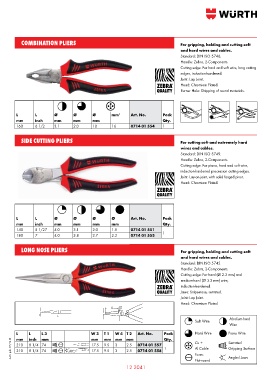

Page 992 - Wurth Total Catalogue

combination pliers For gripping, holding and cutting soft

and hard wires and cables.
Standard: DIN ISO 5746.
Handle: Zebra, 2-Components.
Cutting edge: For hard and soft wire, long cutting
edges, induction- hardened.
Joint: Lap Joint.
Head: Chromium Plated.
Burner Hole: Gripping of round materials.

L L Ø Ø Ø mm� Art. No. Pack
mm inch mm mm mm Qty.
160 6 1/2 3.1 2.0 10 16 0714 01 554 1

side cutting pliers For cutting soft and extremely hard
wires and cables.
Standard: DIN ISO 5749.
Handle: Zebra, 2-Components.
Cutting edge: For piano, hard and soft wire,
induction-hardened precession cutting edges.
Joint: Lay-on joint, with solid forged pivot.
Head: Chromium Plated.

L L Ø Ø Ø Ø Art. No. Pack
mm inch mm mm mm mm Qty.
140 5 1/27 4.0 3.1 2.0 1.5 0714 01 551
180 7 4.0 3.8 2.7 2.2 0714 01 553 1

long nose pliers For gripping, holding and cutting soft
and hard wires and cables.
Standard: DIN ISO 5745.
Handle: Zebra, 2-Components.
Cutting edge: For hard (Ø 2.2 mm) and
medium-hard (Ø 3.2 mm) wire,
induction-hardened.
Jaws: Snipe-nose, serrated.
Joint: Lap Joint.
Head: Chromium Plated.

Medium-hard
Soft Wire
Wire
L L inch L 3 W 3 T 1 W 4 T 2 Art. No. Pack Hard Wire Piano Wire
mm
mm
mm
mm
mm
mm
Qty.
AUS. pub. 07/14 © 210 8 1/4 74 40° 17.5 9.5 3 2.5 0714 01 557 1 Cu + Serrated
Al Cable
Gripping Surface
0714 01 558
210
2.5
9.5
17.5
8 1/4 74
3
Form:
Flat-round Angled Jaws
12 2041
