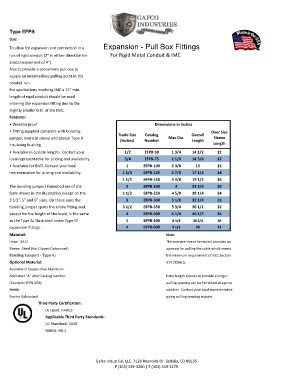

Type EFPB

Use: Expansion - Pull Box Fittings
To allow for expansion and contraction in a
run of rigid conduit (2” in either direction for For Rigid Metal Conduit & IMC

a total movement of 4”).

Also to provide a convenient pull box to

supply an intermediate pulling point in the

conduit run.

For applications involving IMC a 15” min.

length of rigid conduit should be used

entering the expansion fitting due to the

slightly smaller O.D. of the IMC.

Features:

• Weatherproof Dimensions in Inches

• Fitting supplied complete with bonding Trade Size Catalog Max Dia. Overall Over Size
jumper, oversize sleeve and special Type A (Inches) Number Length Sleeve
insulating bushing. Length

• Available in custom lengths. Contact your 1/2 EFPB-50 1 3/4 14 1/2 12

local representative for pricing and availability. 3/4 EFPB-75 2 1/8 14 3/4 12

• Available for EMT. Contact your local 1 EFPB-100 2 3/8 15 12

representative for pricing and availability. 1 1/4 EFPB-125 2 7/8 17 1/4 14

1 1/2 EFPB-150 3 3/8 19 1/2 16

The bonding jumpers furnished are of the 2 EFPB-200 4 23 3/4 20

form shown in the illustration except on the 2 1/2 EFPB-250 4 5/8 28 1/4 24

3 1⁄2”, 5” and 6” sizes. On these sizes the 3 EFPB-300 5 1/8 32 1/4 28

bonding jumper spans the entire fitting and, 3 1/2 EFPB-350 5 3/4 36 1/2 32

except for the length of the braid, is the same 4 EFPB-400 6 1/4 40 1/2 36

as the Type AJ illustrated under Type EF 5 EFPB-500 8 3/8 49 3/4 36
expansion fittings.
6 EFPB-600 9 1/2 58 52

Material: Note:

Head - ZA12 The oversize sleeve furnished provides an

Sleeve - Steel (Hot Dipped Galvanized) opening for pulling the cable which meets

Bonding Jumpers - Type AJ the minimum requirement of NEC Section

Optional Material: 314.28(A)(1).

Available in Copper-free Aluminum.

Add letter “A” after Catalog number. Extra length sleeves to provide a longer

(Example: EFPB-50A). pulling opening can be furnished at a price

Finish: addition. Contact your local representative

Electro Galvanized giving pulling opening require.

Third Party Certification:

UL Listed: E44925

Applicable Third Party Standards:

UL Standard: 514B

NEMA: FB-1

Gafco Industrial, LLC. 7128 Reynolds Dr. Sedalia, CO 80135
P (303) 339-3280 | F (303) 339-3279
