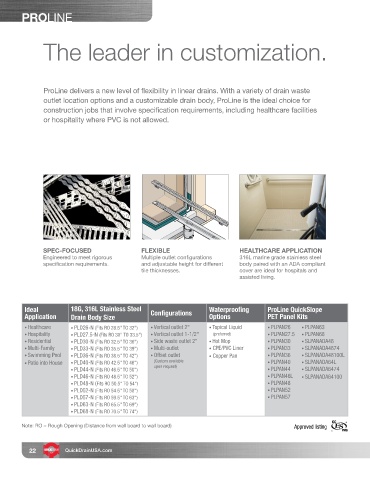

Page 137 - DelcoSalesPlayBook2020!

PROLINE

The leader in customization.

ProLine delivers a new level of flexibility in linear drains. With a variety of drain waste
outlet location options and a customizable drain body, ProLine is the ideal choice for
construction jobs that involve specification requirements, including healthcare facilities
or hospitality where PVC is not allowed.

SPEC-FOCUSED FLEXIBLE HEALTHCARE APPLICATION
Engineered to meet rigorous Multiple outlet configurations 316L marine grade stainless steel
specification requirements. and adjustable height for different body paired with an ADA compliant
tile thicknesses. cover are ideal for hospitals and
assisted living.

Ideal 18G, 316L Stainless Steel Configurations Waterproofing ProLine QuickSlope
Application Drain Body Size Options PET Panel Kits

• Healthcare • PLD26-N (Fits RO 28.5" TO 32") • Vertical outlet 2" • Topical Liquid • PLPAN26 • PLPAN63
• Hospitality • PLD27.5-N (Fits RO 30" TO 33.5") • Vertical outlet 1-1/2" (preferred) • PLPAN27.5 • PLPAN68
• Residential • PLD30-N (Fits RO 32.5" TO 36") • Side waste outlet 2" • Hot Mop • PLPAN30 • SLPANADA48
• Multi-Family • PLD33-N (Fits RO 35.5" TO 39") • Multi-outlet • CPE/PVC Liner • PLPAN33 • SLPANADA4874
• Swimming Pool • PLD36-N (Fits RO 38.5" TO 42") • Offset outlet • Copper Pan • PLPAN36 • SLPANADA48100L
• Patio into House • PLD40-N (Fits RO 42.5" TO 46") (Custom available • PLPAN40 • SLPANADA64L
• PLD44-N (Fits RO 46.5" TO 50") upon request) • PLPAN44 • SLPANADA6474
• PLD46-N (Fits RO 48.5" TO 52") • PLPAN46L • SLPANADA64100
• PLD48-N (Fits RO 50.5" TO 54") • PLPAN48
• PLD52-N (Fits RO 54.5" TO 58") • PLPAN52
• PLD57-N (Fits RO 59.5" TO 63") • PLPAN57
• PLD63-N (Fits RO 65.5" TO 69")
• PLD68-N (Fits RO 70.5" TO 74")

Note: RO = Rough Opening (Distance from wall board to wall board) Approved listing

22 QuickDrainUSA.com
