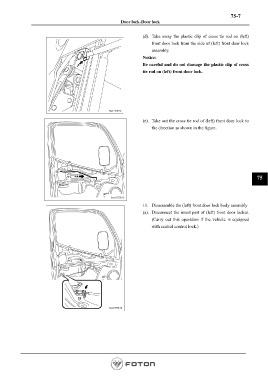

75-7
Door lock-Door lock
(d). Take away the plastic clip of cross tie rod on (left)
front door lock from the side of (left) front door lock
assembly.
Notice:
Be careful and do not damage the plastic clip of cross
tie rod on (left) front door lock.
(e). Take out the cross tie rod of (left) front door lock to
the direction as shown in the figure.
75
11. Disassemble the (left) front door lock body assembly
(a). Disconnect the insert part of (left) front door locker.
(Carry out this operation if the vehicle is equipped
with central control lock.)
