ENGINE MECHANICAL - ENGINE ASSEMBLY                             15-5

                 ENGINE ASSEMBLY

                 REPLACEMENT
                      NOTICE


                 •      Before disassembling the engine assembly, drain up all the fluids in the engine
                        and disconnect the harness, pipe fittings and connections between the engine
                        and the body.
                 •      Before disconnecting all harness and pipes, mark them properly to prevent                    15
                        mismatching or missing harness and pipes during installation.
                 •      Once a fitting is disconnected, seal the opening to avoid foreign objects from
                        entering.
                 •      All drained fluids must be collected and handled as required. Keep the site clean
                        and neat.


                 1 .    Discharge the pressure in the fuel system. (Refer to "Chapter 12 Fuel - fuel
                        system, precaution")
                 2 .    Disconnect and take out the positive and negative battery cables. (Refer to
                        "Chapter 20. Starting & charging - battery, replacement")
                 3 .    Drain the engine oil. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
                        engine oil and oil filter replacement")
                 4 .    Drain the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
                        coolant replacement")
                 5 .    Collect the refrigerant. (Refer to "Chapter 61. heating & A/C - refrigerant,
                        replacement")
                 6 .    Drain up the hydraulic oil in the power steering tank.

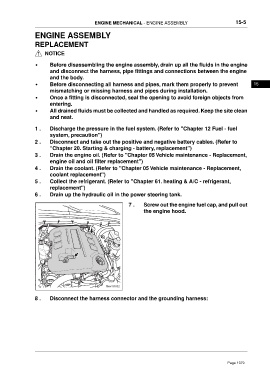

                                                           7 .    Screw out the engine fuel cap, and pull out
                                                                  the engine hood.























                 8 .    Disconnect the harness connector and the grounding harness:
