15-72 ENGINE MECHANICAL - PISTON & CONNECTING ROD ASSEMBLY
PISTON & CONNECTING ROD ASSEMBLY

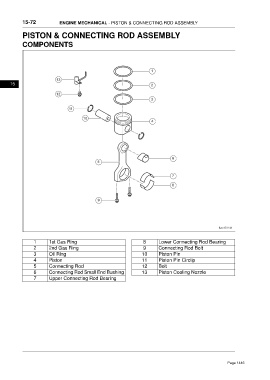

COMPONENTS
15
1 1st Gas Ring 8 Lower Connecting Rod Bearing
2 2nd Gas Ring 9 Connecting Rod Bolt
3 Oil Ring 10 Piston Pin
4 Piston 11 Piston Pin Circlip
5 Connecting Rod 12 Bolt
6 Connecting Rod Small End Bushing 13 Piston Cooling Nozzle
7 Upper Connecting Rod Bearing
